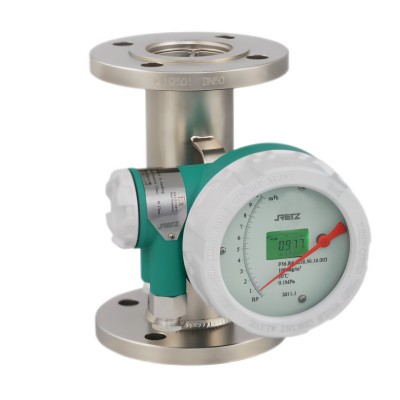

品牌：RETZ/我們一直致力于流體控制和測控領域的持續創新，始于2005……進口金屬管浮子流量計產品用途 Product use

1.主要有三大部分組成：1.測量管體；2.錐形浮子；3.指示器，它可用來測量液體、氣體以及蒸汽的流量，特別適宜低流速小流量的介質流量測量 It mainly consists of three parts: 1. Measuring tube body; 2. Conical float; 3. Indicator, which can be used to measure the flow of liquid, gas, and steam, especially suitable for medium flow measurement with low flow rate and small flow rate

2.浮子的位移量與流大小成正比，通過磁耦合系統，以不接觸方式，將浮子位移量傳給指示器指出流量大小 The displacement of the float is proportional to the flow rate. Through a magnetic coupling system, the float displacement is transmitted to the indicator in a non-contact manner to indicate the flow rate

3.也可配合不同的轉換器，將流量值轉換成標準的電遠傳信號如4-20mA It can also be combined with different converters to convert the flow value into a standard electrical remote transmission signal such as 4-20mA

4.實現距離遠傳顯示、記錄、積算和控制等功能 Achieve functions such as distance remote display, recording, integration, and control

5.具有特別的雙指示系統，雙行液晶數字顯示，耐高溫高壓 With a unique dual indicator system, dual line LCD digital display, high temperature and high pressure resistance

主要特點 Main features

1.采用了16位微處理工業化組件，保證了優良特性 Adopt 16 bit microprocessor industrial components to ensure excellent characteristics

2.適用于小口徑和低流速介質流量測量 Suitable for small diameter and low flow rate medium flow measurement

3.對于直管段要求不高 Low requirements for straight pipe sections

4.較寬的流量比10： 1  Wide flow ratio 10:1

5.雙行大液晶顯示，可同時顯示瞬時流量和累積流量 Dual line large LCD display, which can simultaneously display instantaneous flow and cumulative flow

6.單軸靈敏指示，非接觸磁耦合轉動 Single axis sensitive indication, non-contact magnetic coupling rotation

7.全金屬結構，適合于高溫，高壓和強腐蝕介質 All metal structure, suitable for high temperature, high pressure and strong corrosive media

8.可用于易燃、易爆危險場合 Can be used in flammable and explosive hazardous situations

9.可選二線制、電池、交流供電方式 Optional two-wire system, battery, AC power supply mode

10..多參數標定功能，帶有數據恢復，數據備份及掉電保護功能 Multi-parameter calibration function, with data recovery, data backup, and power down protection functions

進口金屬管浮子流量計技術參數 Technical parameter
