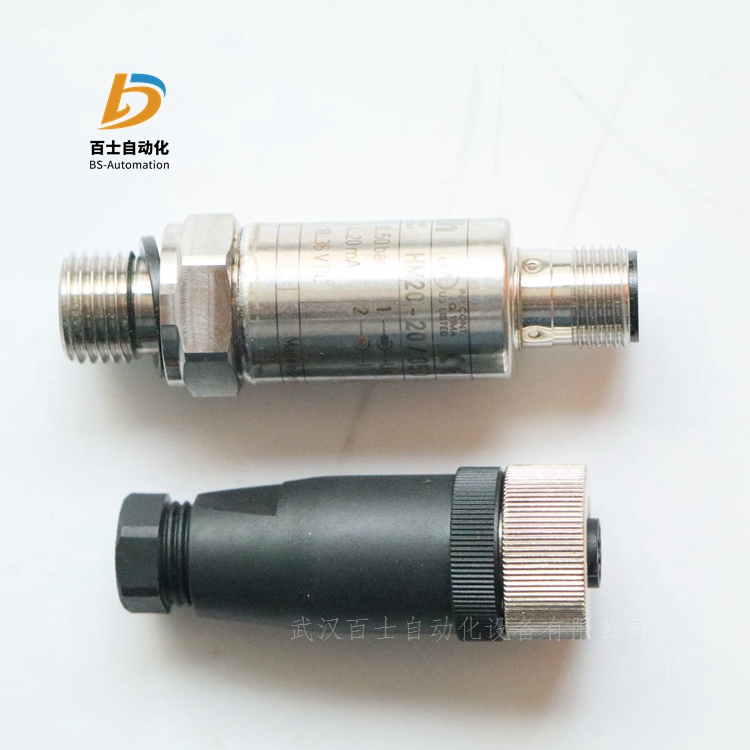

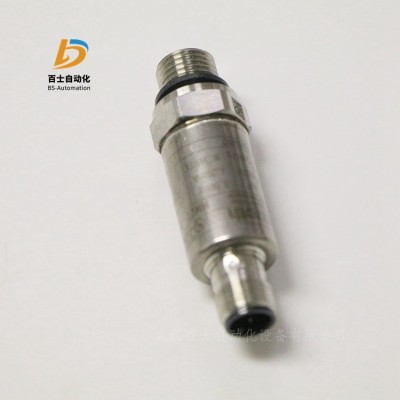

力士樂品牌HM20-20/050-C-K35 R901342022壓力傳感器

武漢百士自動化設備有限公司主營銷售產品，產品實拍，原裝正品，客戶買的安心，用的放心。常用產品現

貨供應，歡迎新老客戶詢價采購！

產品簡介：

力士樂適合液壓應用的壓力傳感器

HM20

組件系列 2X

測量液壓系統壓力

8 個測量范圍，大 630 bar

帶薄膜測量單元的傳感器

與介質接觸的組件由不銹鋼制成

高爆裂壓力，反向極性、過電壓和短路保護，確保操作安全

特性曲線誤差 <0.5 %

非重復性 <±0.05 %

環境溫度 –40 … +85 °C

船用認證 DNV 適用于所有帶電流輸出的型號

力士樂REXROTH壓力傳感器訂貨信息：

HM20-2X/400-C-K35-N

1、類型

HM20 →測壓變換器

2、生產系列號

2X   →設備系列 20 到 29（20 到 29：安裝尺寸和插腳分配不變）

3、大壓力值

10   →10 bar

50   →50 bar

100  →100 bar

160  →160 bar

250  →250 bar

315  →315 bar

400  →400 bar

630  →630 bar

4、輸出類型

C    →電流輸出端 4 至 20 mA（獲得船用認證 DNV）

H    →電壓輸出端 0.1 至 10 V

5、插頭類型

K35  →設備插頭，4 針，M12 x 1

N   →節流元件（相當于 0.3 mm噴嘴）

電纜束或電纜插座不在供貨范圍內；請另行訂購

技術數據：

重量：0.06kg

額定溫度范圍：-25 … +80℃

環境溫度范圍：-40 … +85℃

存儲溫度范圍：-40 … +80℃

壓力介質：HL、HLP、HFC、氮氣（大允許 300 bar）

介質溫度范圍：-40 … +90℃

正弦試驗，符合 DIN EN 60068-2-6：10 ... 2000 Hz/大 10 g/10 個周期/3 個軸

噪音測試符合 DIN EN 60068-2-64：20 … 2000 Hz / 14 g RMS / 24 h / 3 個軸

運輸沖擊符合 DIN EN 60068-2-27：15 g/11 ms/3 個軸

壓力油口（確保徹底排氣）：螺紋連接 G1/4 符合 DIN 3852 形式 E

外殼材料：V4A (1.4404)、PEI、HNB

材料與測量元件的過程連接：1.4542 (17-4 PH / 630); 密封圈 NBR

節流元件：在過程連接的壓力通道中。相當于 0.3 mm 的噴嘴，可降低因壓力峰值或氣蝕等高動態效應而造成損壞的風險。

節流材料：1.4305

緊固扭矩：

液壓接口

<400 bar：20 … 25Nm

≥400 bar：25 … 30Nm

連接插頭（如果不存在擰緊扭矩規格，建議使用。）：0.6 … 1.5Nm

使用壽命：6 千萬加載次數或 60000 h

電磁兼容性 (EMC)

EN 61000-6-2 / EN 61326-2-3

EN 61000-4-2 靜電放電抗干擾性檢測：4 CD / 8 AD 帶有 BWK B（kV）

EN 61000-4-3 射頻電磁波抗干擾檢測：10V/m (80 … 2700 MHz)，帶有 BWK A

EN 61000-4-4 電性快速脈沖群抗干擾檢測：2 帶有 BWK B（kV）

EN 61000-4-5 浪涌雷擊測試：1 帶有 BWK B（kV）

EN 61000-4-6 HF conducted：10V (150 kHz … 80 MHz)，帶有 BWK A

EN 61000-4-8 電源頻率磁場抗干擾檢測 50/60 Hz：100A/m，帶有 BWK A

EN 61000-4-9 電源頻率磁場脈沖抗干擾檢測：1000A/m 帶有 BWK A

EN 61000-6-3 / EN 61326-2-3

EN 55016-2-1 干擾電壓檢測：0.15 … 30MHz（等級 B，EN 55022）

EN 55016-2-3 無線電干擾場強檢測：30 … 1000MHz（等級 B, EN 55022）

電氣連接：連接器，4 極 M12 x 1，外殼上

防護等級符合 EN 60529 標準：IP65 / IP67（如果使用的是適合且正確安裝的連接插頭。）

符合性：

CE：根據 EMC 指令

UKCA：根據 "UK EMC Regulations

輸入：

電源：：24V

電流消耗：≤ 12mA

絕緣電阻：> 100MΩ(500 VDC)

輸出：

輸出信號：

電流：4 … 20mA

電壓：0.1 … 10V

設置時間 (10 ... 90 %)：< 1ms

特性曲線誤差（在整體測量范圍內，包括非線性、滯后、零電位和端值偏差，符合 IEC 61298-2 規定的測量偏差要求）：< 0.5%

溫度系數

零位和范圍

額定溫度范圍內：< 0.1%/10 K

超出額定溫度范圍：< 0.2%/10 K

特定條件下的長期漂移（1 年）：< ± 0.1%

德國力士樂REXROTH壓力傳感器訂貨號和型號：

力士樂REXROTH液壓應用壓力傳感器

0811405540 HM18-1X/210-V-S/V0/0

0811405539 HM18-1X/160-C-B/V0/0

R901364927 HM20-2X/10-C-K35

R901371391 HM20-2X/10-H-K35

R901342024 HM20-2X/100-C-K35

R901407030 HM20-2X/100-F-K35

R901342025 HM20-2X/100-H-K35

R901431625 HM20-2X/100-H-K35+ZC0067

R901342040 HM20-2X/125-F-C19-0,16

R901381345 HM20-2X/160-C-K35

R901365994 HM20-2X/160-F-C15-0,25-V

R901381347 HM20-2X/160-H-K35

R901342026 HM20-2X/250-C-K35

R901396767 HM20-2X/250-C-K35-V

R901365996 HM20-2X/250-F-C15-0,25-V

R901342041 HM20-2X/250-F-C19-0,16

R901342027 HM20-2X/250-H-K35

R901456333 HM20-2X/250-H-K35-N

R901342029 HM20-2X/315-C-K35

R901342038 HM20-2X/315-F-C13-0,5

R901434727 HM20-2X/315-F-C19-0,16

R901342030 HM20-2X/315-H-K35

R901342033 HM20-2X/400-C-K35

R901295669 HM20-1X/400-C-K35

R901456334 HM20-2X/400-C-K35-N

R901342043 HM20-2X/400-F-C19-0,16

R901342034 HM20-2X/400-H-K35

R901295670 HM20-1X/400-H-K35

R901431631 HM20-2X/400-H-K35+ZC0067

R901342022 HM20-2X/50-C-K35

R901365993 HM20-2X/50-F-C15-0,25-V

R901342023 HM20-2X/50-H-K35

R901431623 HM20-2X/50-H-K35+ZC0067

R901342042 HM20-2X/63-F-C19-0,16

R901342035 HM20-2X/630-C-K35

R901342079 HM20-2X/630-F-C19-0,16

R901342036 HM20-2X/630-H-K35

R901431633 HM20-2X/630-H-K35+ZC0067

R901364927 HM20-22/10-C-K35

R901371391 HM20-22/10-H-K35

R901342024 HM20-22/100-C-K35

R901407030 HM20-22/100-F-K35

R901342025 HM20-22/100-H-K35

R901431625 HM20-22/100-H-K35+ZC0067

R901342040 HM20-22/125-F-C19-0,16

R901381345 HM20-22/160-C-K35

R901365994 HM20-22/160-F-C15-0,25-V

R901381347 HM20-22/160-H-K35

R901342026 HM20-22/250-C-K35

R901396767 HM20-22/250-C-K35-V

R901365996 HM20-22/250-F-C15-0,25-V

R901342041 HM20-22/250-F-C19-0,16

R901342027 HM20-22/250-H-K35

R901456333 HM20-22/250-H-K35-N

R901342029 HM20-22/315-C-K35

R901342038 HM20-22/315-F-C13-0,5

R901434727 HM20-22/315-F-C19-0,16

R901342030 HM20-22/315-H-K35

R901342033 HM20-22/400-C-K35

R901295669 HM20-1X/400-C-K35

R901456334 HM20-22/400-C-K35-N

R901342043 HM20-22/400-F-C19-0,16

R901342034 HM20-22/400-H-K35

R901295670 HM20-1X/400-H-K35

R901431631 HM20-22/400-H-K35+ZC0067

R901342022 HM20-22/50-C-K35

R901365993 HM20-22/50-F-C15-0,25-V

R901342023 HM20-22/50-H-K35

R901431623 HM20-22/50-H-K35+ZC0067

R901342042 HM20-22/63-F-C19-0,16

R901342035 HM20-22/630-C-K35

R901342079 HM20-22/630-F-C19-0,16

R901342036 HM20-22/630-H-K35

R901431633 HM20-22/630-H-K35+ZC0067

R901364927 HM20-20/10-C-K35

R901371391 HM20-20/10-H-K35

R901342024 HM20-20/100-C-K35

R901407030 HM20-20/100-F-K35

R901342025 HM20-20/100-H-K35

R901431625 HM20-20/100-H-K35+ZC0067

R901342040 HM20-20/125-F-C19-0,16

R901381345 HM20-20/160-C-K35

R901365994 HM20-20/160-F-C15-0,25-V

R901381347 HM20-20/160-H-K35

R901342026 HM20-20/250-C-K35

R901396767 HM20-20/250-C-K35-V

R901365996 HM20-20/250-F-C15-0,25-V

R901342041 HM20-20/250-F-C19-0,16

R901342027 HM20-20/250-H-K35

R901456333 HM20-20/250-H-K35-N

R901342029 HM20-20/315-C-K35

R901342038 HM20-20/315-F-C13-0,5

R901434727 HM20-20/315-F-C19-0,16

R901342030 HM20-20/315-H-K35

R901342033 HM20-20/400-C-K35

R901295669 HM20-11/400-C-K35

R901456334 HM20-20/400-C-K35-N

R901342043 HM20-20/400-F-C19-0,16

R901342034 HM20-20/400-H-K35

R901295670 HM20-11/400-H-K35

R901431631 HM20-20/400-H-K35+ZC0067

R901342022 HM20-20/50-C-K35

R901342022 HM20-20/050-C-K35

R901365993 HM20-20/50-F-C15-0,25-V

R901342023 HM20-20/50-H-K35

R901431623 HM20-20/50-H-K35+ZC0067

R901342042 HM20-20/63-F-C19-0,16

R901342035 HM20-20/630-C-K35

R901342079 HM20-20/630-F-C19-0,16

R901342036 HM20-20/630-H-K35

R901431633 HM20-20/630-H-K35+ZC0067

R901364927 HM20-21/10-C-K35

R901371391 HM20-21/10-H-K35

R901342024 HM20-21/100-C-K35

R901407030 HM20-21/100-F-K35

R901342025 HM20-21/100-H-K35

R901431625 HM20-21/100-H-K35+ZC0067

R901342040 HM20-21/125-F-C19-0,16

R901381345 HM20-21/160-C-K35

R901365994 HM20-21/160-F-C15-0,25-V

R901381347 HM20-21/160-H-K35

R901342026 HM20-21/250-C-K35

R901396767 HM20-21/250-C-K35-V

R901365996 HM20-21/250-F-C15-0,25-V

R901342041 HM20-21/250-F-C19-0,16

R901342027 HM20-21/250-H-K35

R901456333 HM20-21/250-H-K35-N

R901342029 HM20-21/315-C-K35

R901342038 HM20-21/315-F-C13-0,5

R901434727 HM20-21/315-F-C19-0,16

R901342030 HM20-21/315-H-K35

R901342033 HM20-21/400-C-K35

R901295669 HM20-11/400-C-K35

R901456334 HM20-21/400-C-K35-N

R901342043 HM20-21/400-F-C19-0,16

R901342034 HM20-21/400-H-K35

R901295670 HM20-11/400-H-K35

R901431631 HM20-21/400-H-K35+ZC0067

R901342022 HM20-21/50-C-K35

R901342022 HM20-21/ 50-C-K35

R901365993 HM20-21/50-F-C15-0,25-V

R901342023 HM20-21/50-H-K35

R901431623 HM20-21/50-H-K35+ZC0067

R901342042 HM20-21/63-F-C19-0,16

R901342035 HM20-21/630-C-K35

R901342079 HM20-21/630-F-C19-0,16

R901342036 HM20-21/630-H-K35

R901431633 HM20-21/630-H-K35+ZC0067

R901364927 HM20-1X/10-C-K35

R901371391 HM20-1X/10-H-K35

R901342024 HM20-1X/100-C-K35

R901407030 HM20-1X/100-F-K35

R901342025 HM20-1X/100-H-K35

R901431625 HM20-1X/100-H-K35+ZC0067

R901342040 HM20-1X/125-F-C19-0,16

R901381345 HM20-1X/160-C-K35

R901365994 HM20-1X/160-F-C15-0,25-V

R901381347 HM20-1X/160-H-K35

R901342026 HM20-1X/250-C-K35

R901396767 HM20-1X/250-C-K35-V

R901365996 HM20-1X/250-F-C15-0,25-V

R901342041 HM20-1X/250-F-C19-0,16

R901342027 HM20-1X/250-H-K35

R901456333 HM20-1X/250-H-K35-N

R901342029 HM20-1X/315-C-K35

R901342038 HM20-1X/315-F-C13-0,5

R901434727 HM20-1X/315-F-C19-0,16

R901342030 HM20-1X/315-H-K35

R901342033 HM20-1X/400-C-K35

R901295669 HM20-1X/400-C-K35

R901456334 HM20-1X/400-C-K35-N

R901342043 HM20-1X/400-F-C19-0,16

R901342034 HM20-1X/400-H-K35

R901295670 HM20-1X/400-H-K35

R901431631 HM20-1X/400-H-K35+ZC0067

R901342022 HM20-1X/50-C-K35

R901365993 HM20-1X/50-F-C15-0,25-V

R901342023 HM20-1X/50-H-K35

R901431623 HM20-1X/50-H-K35+ZC0067

R901342042 HM20-1X/63-F-C19-0,16

R901342035 HM20-1X/630-C-K35

R901342079 HM20-1X/630-F-C19-0,16

R901342036 HM20-1X/630-H-K35

R901431633 HM20-1X/630-H-K35+ZC0067

R901364927 HM20-10/10-C-K35

R901371391 HM20-10/10-H-K35

R901342024 HM20-10/100-C-K35

R901407030 HM20-10/100-F-K35

R901342025 HM20-10/100-H-K35

R901431625 HM20-10/100-H-K35+ZC0067

R901342040 HM20-10/125-F-C19-0,16

R901381345 HM20-10/160-C-K35

R901365994 HM20-10/160-F-C15-0,25-V

R901381347 HM20-10/160-H-K35

R901342026 HM20-10/250-C-K35

R901396767 HM20-10/250-C-K35-V

R901365996 HM20-10/250-F-C15-0,25-V

R901342041 HM20-10/250-F-C19-0,16

R901342027 HM20-10/250-H-K35

R901456333 HM20-10/250-H-K35-N

R901342029 HM20-10/315-C-K35

R901342038 HM20-10/315-F-C13-0,5

R901434727 HM20-10/315-F-C19-0,16

R901342030 HM20-10/315-H-K35

R901342033 HM20-10/400-C-K35

R901295669 HM20-10/400-C-K35

R901456334 HM20-10/400-C-K35-N

R901342043 HM20-10/400-F-C19-0,16

R901342034 HM20-10/400-H-K35

R901295670 HM20-10/400-H-K35

R901431631 HM20-10/400-H-K35+ZC0067

R901342022 HM20-10/50-C-K35

R901365993 HM20-10/50-F-C15-0,25-V

R901342023 HM20-10/50-H-K35

R901431623 HM20-10/50-H-K35+ZC0067

R901342042 HM20-10/63-F-C19-0,16

R901342035 HM20-10/630-C-K35

R901342079 HM20-10/630-F-C19-0,16

R901342036 HM20-10/630-H-K35

R901431633 HM20-10/630-H-K35+ZC0067

R901364927 HM20-11/10-C-K35

R901371391 HM20-11/10-H-K35

R901342024 HM20-11/100-C-K35

R901407030 HM20-11/100-F-K35

R901342025 HM20-11/100-H-K35

R901431625 HM20-11/100-H-K35+ZC0067

R901342040 HM20-11/125-F-C19-0,16

R901381345 HM20-11/160-C-K35

R901365994 HM20-11/160-F-C15-0,25-V

R901381347 HM20-11/160-H-K35

R901342026 HM20-11/250-C-K35

R901396767 HM20-11/250-C-K35-V

R901365996 HM20-11/250-F-C15-0,25-V

R901342041 HM20-11/250-F-C19-0,16

R901342027 HM20-11/250-H-K35

R901456333 HM20-11/250-H-K35-N

R901342029 HM20-11/315-C-K35

R901342038 HM20-11/315-F-C13-0,5

R901434727 HM20-11/315-F-C19-0,16

R901342030 HM20-11/315-H-K35

R901342033 HM20-11/400-C-K35

R901295669 HM20-11/400-C-K35

R901456334 HM20-11/400-C-K35-N

R901342043 HM20-11/400-F-C19-0,16

R901342034 HM20-11/400-H-K35

R901295670 HM20-11/400-H-K35

R901431631 HM20-11/400-H-K35+ZC0067

R901342022 HM20-11/50-C-K35

R901365993 HM20-11/50-F-C15-0,25-V

R901342023 HM20-11/50-H-K35

R901431623 HM20-11/50-H-K35+ZC0067

R901342042 HM20-11/63-F-C19-0,16

R901342035 HM20-11/630-C-K35

R901342079 HM20-11/630-F-C19-0,16

R901342036 HM20-11/630-H-K35

R901431633 HM20-11/630-H-K35+ZC0067

0811405550 HM18-1X/200/V1/0

0811405545 HM18-1X/210-C-B/V0/0

0811405543 HM18-1X/210-C-R/V0/0

0811405541 HM18-1X/210-C-S/V0/0

0811405552 HM18-1X/210-D-R/V0/0

0811405531 HM18-1X/210-V-R/V0/0

0811405540 HM18-1X/210-V-S/V0/0

0811405559 HM18-1X/315-V-B/V0/0

0811405546 HM18-1X/350-C-B/V0/0

0811405544 HM18-1X/350-C-R/V0/0

0811405542 HM18-1X/350-C-S/V0/0

0811405553 HM18-1X/350-D-R/V0/0

0811405535 HM18-1X/350-N-B/V0/0

0811405557 HM18-1X/350-N-S/V0/0

0811405538 HM18-1X/350-N-S/V0/0

0811405532 HM18-1X/350-V-R/V0/0

0811405547 HM18-1X/350-V-S/V0/0

0811405556 HM18-1X/060-C-R/V0/0

0811405549 HM18-1X/060-C-S/V0/0

0811405533 HM18-1X/060-V-S/V0/0

0811405548 HM18-1X/100-C-S/V0/0

0811405537 HM18-1X/100-N-S/V0/0

0811405554 HM18-1X/100-V-S/V0/0

0811405539 HM18-1X/160-C-B/V0/0

0811405551 HM18-1X/160/V1/0

0811405534 HM18-1X/200-N-B/V0/0

0811405536 HM18-1X/200-N-S/V0/0
