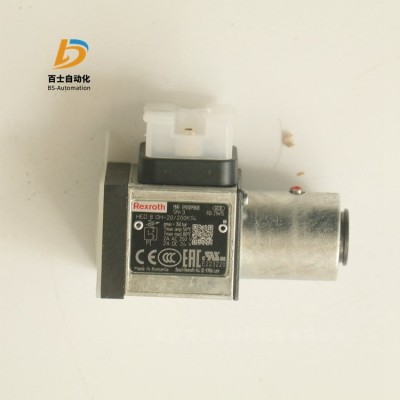

REXROTH壓力繼電器R901099808 HED8OH-20/200K14

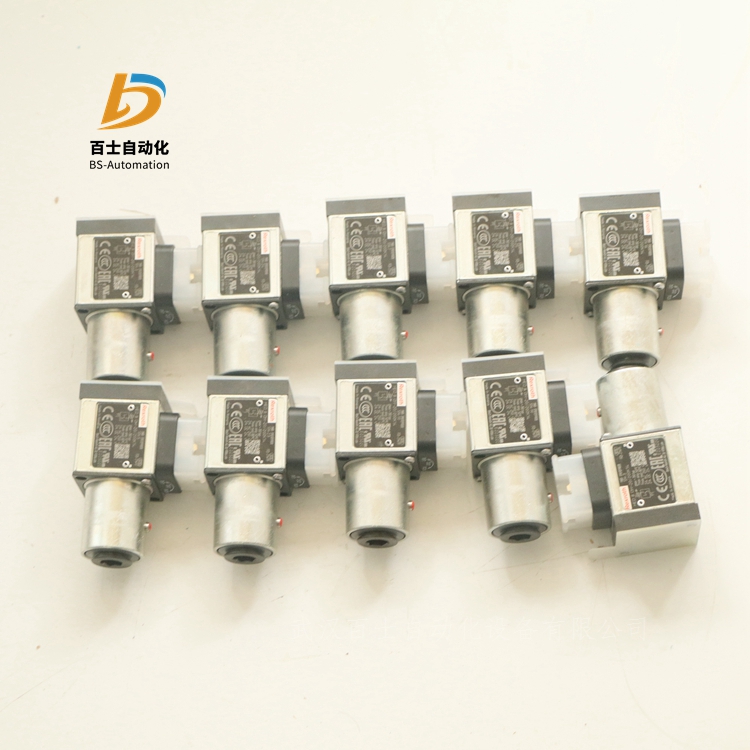

武漢百士自動化設備有限公司主營銷售產品，產品實拍，原裝正品，客戶買的安心，用的放心。常用產品現

貨供應，歡迎新老客戶詢價采購！

產品簡介：

液壓-電氣柱塞式壓力開關

HED5 -3X

組件系列 3X

大工作壓力 400 bar

壓力等級 25、63、100、200 和 400 bar

UL 認證

CCC 認證（MT 型號除外）

4 個壓力等級

帶大型方形連接器的電氣連接

帶常閉/常開觸點功能的微動開關

電流零電位轉換（從 1 mA 到 2 A）

HED 5 類型的液壓-電氣壓力開關是柱塞式壓力開關。

基本構成是殼體、帶柱塞的安裝套件、壓縮彈簧、調節元件和微動開關

被監測的壓力作用于柱塞

后者受彈簧座支持并克服壓縮彈簧不斷變化的作用力。

彈簧座將柱塞的運動傳輸到微動開關。這會打開或關閉電路，具體取決于電路設置。

注意：

要延長使用壽命，安裝壓力開關時應確保振動較小，使其免于受到液壓沖擊。

力士樂REXROTH液壓-電氣柱塞式壓力開關

HED 8 -2X

組件系列 2X

大工作壓力 630 bar

壓力等級 50、100、200、350 和 630 bar

UL 組件，CCC 認證

重量：0.8kg

安裝位置：任意

環境溫度范圍（NBR 密封件）：-25 … +50℃

環境溫度范圍（FKM 密封件）：-20 … +50℃

環境溫度范圍（低溫密封件）：-40 … +50℃

正弦試驗：DIN EN 60068-2-6:1996-05：10…2000 Hz / 大 10 g / 10 倍周期

運輸沖擊：DIN EN 60068-2-27:1995-03：15 g / 11 ms

沖擊測試：DIN EN 60068-2-29:1995-03：25 g / 6 ms

噪音測試：DIN EN 60068-2-64:1996-05:20…2000 Hz / 10 g RMS / 30 min

符合性/證書：

CE：

DIN EN 61058-1: 2002 / A2: 2008

DIN EN 60947-1: 2007 / A1: 2011

DIN EN 60947-5-1: 2004 / A1: 2009

DIN EN 60529: 1991 / A2: 2013

UL：UL 508 第 17 版，文件編號：E223220（高 350 bar）

CCC：GB14048.5-2008

RoHS：符合歐盟指令 2011/65/EU

液壓油溫度范圍（NBR 密封件）：-25 … +80℃

液壓油溫度范圍（FKM 密封件）：-20 … +80℃

液壓油溫度范圍（低溫密封件）：-40 … +80℃

粘度范圍：10 … 800mm2/s

加載次數：≥ 5 百萬

帶連接器“K14”：EN 175301-803，3 極 + PE

防護等級符合 EN 60529 標準：IP65（已安裝并固定連接插頭）

帶連接器“K35”：IEC 61076-2-101，M12 x 1，A 編碼，4 極

防護等級符合 EN 60529 標準：IP67，已安裝和裝配連接插頭

大切換頻率：7200 1/h

轉換度（重復精度）：< 調定壓力的 1 %

開關：符合 VDE 0630-1/DIN EN 61058-1

轉換電阻：< 50mΩ

特點：

用于底板安裝/管道安裝

用于法蘭連接，符合 ISO 16873

作為垂直疊加元件，與疊加閥板相連接，符合 ISO 4401

5 檔壓力

4 種調整類型：

– 帶或不帶保護帽的主軸

– 帶刻度的主軸，帶或不帶保護帽

– 帶刻度旋鈕

– 帶刻度可鎖定旋鈕

電氣連接

– 帶設計 A 閥插頭（大型方形連接器）

– 帶 M12 x 1 連接器

帶常閉/常開觸點功能的微動開關

電流零電位轉換（從 1 mA 到 2 A）

壓力范圍經過 UL 認證，高達 350 bar

HED 8 類型的液壓-電氣壓力開關是柱塞式壓力開關。它們的基本構成是殼體、帶柱塞的安裝套件、壓縮彈簧、調節元件和微動開關。

如果要監測的壓力低于調定壓力，則操作微動開關。要監測的壓力通過節流孔傳到柱塞。柱塞受彈簧座支持并克服壓縮彈簧不斷變化的作用力。彈簧座將柱塞的運動傳輸到微動開關，并在達到調定壓力時釋放后者的壓力。這會打開或關閉電路，具體取決于電路設置。彈簧座的機械前擋塊在壓力突然降低和過壓的情況下，可保護微動開關免于受到機械損傷，并防止壓縮彈簧的固態壓縮。

注意：

要延長使用壽命，安裝壓力開關時應確保振動較小，使其免于受到液壓沖擊。

德國力士樂REXROTH壓力繼電器訂貨號和型號：

R901099808 HED8OH-20/200K14

R901107369 HED8OH-20/200K14KW

R901101640 HED8OH-20/350K14

R901102747 HED8OP-20/100K14

R901107370 HED8OP-20/100K14KW

R901102721 HED8OP-20/200K14

R901108018 HED8OP-20/200K14KW

R901106453 HED8OP-20/350K14

R901107914 HED8OP-20/350K14KS

R901102349 HED8OH-20/50K14

R901107086 HED8OH-20/50K14AS

R901102706 HED8OA-20/100K14

R901106262 HED8OA-20/100K14AS

R901095551 HED8OA-20/100K14KS

R901106448 HED8OA-20/200K14KW

R901102716 HED8OA-20/350K14KW

R901107915 HED8OA-20/630K14S

R901102360 HED8OH-20/100K14

R901107122 HED8OH-20/100K14KW

R901102706 HED8OA-2X/100K14

R901094159 HED8OA-2X/100K14KW

R901101698 HED8OA-2X/50K14

R901102716 HED8OA-2X/350K14KW

R901102710 HED8OA-2X/350K14

R901102711 HED8OA-2X/100K14S

R901102708 HED8OA-2X/200K14

R901106448 HED8OA-2X/200K14KW

R901102747 HED8OP-2X/100K14

R901107370 HED8OP-2X/100K14KW

R901107083 HED8OP-2X/50K14

R901106453 HED8OP-2X/350K14

R901107129 HED8OP-2X/350K14KW

R901091138 HED8OP-2X/350K14AS

R901102721 HED8OP-2X/200K14

R901108018 HED8OP-2X/200K14KW

R901107095 HED8OH-2X/350K14KW

R901099789 HED8OH-2X/200K14V

R901102349 HED8OH-2X/50K14

R901107086 HED8OH-2X/50K14AS

R901099808 HED8OH-2X/200K14

R901107369 HED8OH-2X/200K14KW

R901101640 HED8OH-2X/350K14

R901102360 HED8OH-2X/100K14

R901107122 HED8OH-2X/100K14KW

R901107122 HED8OH-2X/100K14KW

R901109532 HED8OH-2X/100K14KWV

R901095375 HED8OH-2X/100K14S

R901108268 HED8OH-2X/100K14SV

R901099775 HED8OH-2X/100K14V

R901125068 HED8OH-2X/100K35KS

R901315927 HED8OH-2X/100K35S

R901421283 HED8OH-2X/100U060K14S

R901108239 HED8OH-2X/100U070K14S

R901099808 HED8OH-2X/200K14

R901099809 HED8OH-2X/200K14A

R901107119 HED8OH-2X/200K14AS

R901109530 HED8OH-2X/200K14ASV

R901099790 HED8OH-2X/200K14AV

R901099811 HED8OH-2X/200K14KS

R901099792 HED8OH-2X/200K14KSV

R901107369 HED8OH-2X/200K14KW

R901125810 HED8OH-2X/200K14KWV

R901102362 HED8OH-2X/200K14S

R901109074 HED8OH-2X/200K14SV

R901099789 HED8OH-2X/200K14V

R901148816 HED8OH-2X/200K35KS

R901171767 HED8OH-2X/200K35S

R901270140 HED8OH-2X/200P110K14S

R901139168 HED8OH-2X/200P145K14S

R901139169 HED8OH-2X/200P185K14S

R901099813 HED8OH-2X/200U150K14V

R901099814 HED8OH-2X/200U180K14V

R901099793 HED8OH-2X/200U185K14V

R901101640 HED8OH-2X/350K14

R901107313 HED8OH-2X/350K14A

R901108236 HED8OH-2X/350K14AS

R901109071 HED8OH-2X/350K14ASV

R901099816 HED8OH-2X/350K14AV

R901106454 HED8OH-2X/350K14KS

R901099817 HED8OH-2X/350K14KSV

R901107095 HED8OH-2X/350K14KW

R901109069 HED8OH-2X/350K14KWV

R901102713 HED8OH-2X/350K14S

R901109065 HED8OH-2X/350K14SV

R901099815 HED8OH-2X/350K14V

R901388617 HED8OH-2X/350K35

R901417246 HED8OH-2X/350K35AS

R901265207 HED8OH-2X/350K35S

R901128257 HED8OH-2X/50F004K14SV

R901219262 HED8OH-2X/50F010K14V

R901102349 HED8OH-2X/50K14

R901108007 HED8OH-2X/50K14A

R901107086 HED8OH-2X/50K14AS

R901109050 HED8OH-2X/50K14ASV

R901099798 HED8OH-2X/50K14AV

R901102356 HED8OH-2X/50K14KS

R901099800 HED8OH-2X/50K14KSV

R901107394 HED8OH-2X/50K14KW

R901109049 HED8OH-2X/50K14KWV

R901102712 HED8OH-2X/50K14S

R901215098 HED8OH-2X/50K14SV

R901099796 HED8OH-2X/50K14V

R901156058 HED8OH-2X/50K35KS

R901231720 HED8OH-2X/50K35S

R901101658 HED8OH-2X/630K14

R901109035 HED8OH-2X/630K14AS

R901109039 HED8OH-2X/630K14ASV

R901136386 HED8OH-2X/630K14KS

R901307873 HED8OH-2X/630K14KSV

R901336213 HED8OH-2X/630K14KW

R901109029 HED8OH-2X/630K14S

R901101649 HED8OH-2X/630K14V

R901369355 HED8OH-2X=200K14

R901342162 HED8OH-2X=50K14

R901232375 HED8OH-2X=50K14S

R987140394 HED8OH2X/350K14+PISTOKE

R901102747 HED8OP-2X/100K14

R901108229 HED8OP-2X/100K14A

R901107790 HED8OP-2X/100K14AS

R901162988 HED8OP-2X/100K14ASV

R901321355 HED8OP-2X/100K14AV

R901107997 HED8OP-2X/100K14KS

R901107370 HED8OP-2X/100K14KW

R901106509 HED8OP-2X/100K14S

R901109028 HED8OP-2X/100K14SV

R901108265 HED8OP-2X/100K14V

R901437159 HED8OP-2X/100K35

R901206318 HED8OP-2X/100K35KW

R901127492 HED8OP-2X/100K35S

R901354506 HED8OP-2X/100P020K14S

R901354507 HED8OP-2X/100P030K14S

R901109027 HED8OP-2X/100P070K14S

R901102721 HED8OP-2X/200K14

R901108023 HED8OP-2X/200K14A

R901108003 HED8OP-2X/200K14AS

R901109024 HED8OP-2X/200K14ASV

R901137607 HED8OP-2X/200K14AV

R901108258 HED8OP-2X/200K14KS

R901108018 HED8OP-2X/200K14KW

R901109010 HED8OP-2X/200K14KWV

R901107093 HED8OP-2X/200K14S

R901109004 HED8OP-2X/200K14SV

R901107397 HED8OP-2X/200K14V

R901336909 HED8OP-2X/200K35S

R901233431 HED8OP-2X/200P110K14S

R901108992 HED8OP-2X/200P160K14S

R901106453 HED8OP-2X/350K14

R901107326 HED8OP-2X/350K14A

R901091138 HED8OP-2X/350K14AS

R901108531 HED8OP-2X/350K14ASV

R901126082 HED8OP-2X/350K14AV

R901107914 HED8OP-2X/350K14KS

R901107129 HED8OP-2X/350K14KW

R901122124 HED8OP-2X/350K14KWV

R901102365 HED8OP-2X/350K14S

R901107913 HED8OP-2X/350K14SV

R901107330 HED8OP-2X/350K14V

R901127494 HED8OP-2X/350K35S

R901434285 HED8OP-2X/350P120K14KS

R901108252 HED8OP-2X/350P140K14S

R901456336 HED8OP-2X/350P280K14S

R901107083 HED8OP-2X/50K14

R901107999 HED8OP-2X/50K14A

R901107396 HED8OP-2X/50K14AS

R901123736 HED8OP-2X/50K14AV

R901108012 HED8OP-2X/50K14KS

R901108249 HED8OP-2X/50K14KW

R901106504 HED8OP-2X/50K14S

R901140517 HED8OP-2X/50K14SV

R901108001 HED8OP-2X/50K14V

R901131275 HED8OP-2X/50K35

R901336910 HED8OP-2X/50K35S

R901159161 HED8OP-2X/50K35V

R901245432 HED8OP-2X/50U025K14AV

R901108147 HED8OP-2X/630K14

R901210429 HED8OP-2X/630K14A

R901280745 HED8OP-2X/630K14AS

R901171255 HED8OP-2X/630K14ASV

R901124650 HED8OP-2X/630K14KS

R901315271 HED8OP-2X/630K14KW

R901106449 HED8OP-2X/630K14S

R901108529 HED8OP-2X/630K14V

R901437158 HED8OP-2X/630K35

R901251521 HED8OP-2X=50K14AS

R987437823 HED8OH-2X/100K14SSETTO80BARFALLING

R987411811 HED8OP2X/350K14SSETTO280BAR

R971012678 HED8OA-2X/350K14S(12.3MPA)

R971012679 HED8OA-2X/350K14S(17.2MPA)

R971012681 HED8OA-2X/350K14S(21.6MPA)

R987136869 HED8OA2X/50K14STARATOA5BAR

R901102706 HED8OA-20/100K14

R901106257 HED8OA-20/100K14/12

R901106259 HED8OA-20/100K14A

R901135255 HED8OA-20/100K14A/12

R901106262 HED8OA-20/100K14AS

R901111210 HED8OA-20/100K14AS/12

R901449421 HED8OA-20/100K14ASMT

R901106263 HED8OA-20/100K14ASV

R901141703 HED8OA-20/100K14ASV/12

R901108526 HED8OA-20/100K14AV

R901095551 HED8OA-20/100K14KS

R901145180 HED8OA-20/100K14KSV

R901094159 HED8OA-20/100K14KW

R901316371 HED8OA-20/100K14KW/12

R901153040 HED8OA-20/100K14KWV

R901102711 HED8OA-20/100K14S
