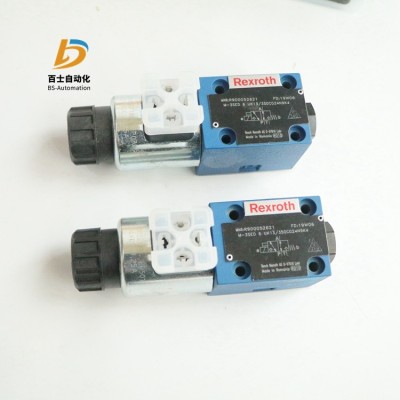

電磁球閥R900052621 M-3SED6UK13/350CG24N9K4力士樂品牌

武漢百士自動化設備有限公司主營銷售產品，產品實拍，原裝正品，客戶買的安心，用的放心。常用產品

現貨供應，歡迎新老客戶詢價采購！

產品簡介：

力士樂REXROTH電磁操作的二位二通、二位三通和二位四通方向座閥

M-.SED6

規格 6

組件系列 1X

大工作壓力 350 bar

大流量 25 l/min

特點

電磁操作的直動式方向座閥

油口安裝面符合 DIN 24340 形式 A（不帶孔）

油口安裝面符合 ISO 4401-03-02-0-05（帶孔）

安全切換，也能夠承受壓力下的較長停機時間

帶可拆卸線圈的濕式插腳直流線圈（若為交流電源則必須裝有整流器）

電磁線圈可旋轉 90°

更換線圈時，不必打開耐壓密閉腔體

電氣連接作為單個連接

帶隱藏的手動應急控制，可選

位置感應開關（無觸點）

產品說明

二位四通方向座閥

二位二通和二位三通方向座閥

M-.SED 型號的方向閥是電磁操作的直動式方向座閥。該閥控制流體的啟動、停止和方向，主要由殼體、線圈、閥座和以及閉合元件組成。

手動應急操作允許在不給線圈通電的情況下切換閥。

基本原理 （二位三通方向座閥）

閥的初始位置（常開“UK”或常閉“CK”）由彈簧的布置情況決定。閉合元件后的腔體連接到油口 P，并且與油口 T 密封隔開。因此，閥門根據啟動力（線圈和彈簧）進行壓力補償。

通過特殊的閉合元件，油口 P、A 和 T 可加載大工作壓力 (350 bar)，并且流體可流向兩個方向（請參閱符號）！

在初始位置，閉合元件由彈簧壓入閥座，在閥芯位置，它由線圈 壓入閥座。因此，流體被堵塞。

通過二位二通方向座閥，回油口在內部關閉。

二位四通方向座閥

二位二通和二位三通方向座閥

通過二位三通方向座閥下方稱為 Plus-1 板的疊加閥板，可實現二位四通方向座閥的功能。

Plus-1 板的功能

初始位置：

不操作主閥。彈簧將閉合元件保持在閥座 上。油口 P 被堵塞，油口 A 連接到油口 T?？刂朴吐愤B接 A 和控制閥芯的較大區域，因而可卸載至油箱。通過 P 施加的壓力會將滾珠推到閥座上。因此，P 連接到 B，并且 A 連接到 T。

過渡位置：

啟動主閥后，閉合元件克服彈簧移動，并且被壓入閥座。在此期間，將堵塞油口 T，而將 P、A 和 B 短暫連接在一起。

切換位置：

P 連接到 A。由于泵壓力經由 A 作用在控制閥芯的較大區域上，滾珠被壓入閥座。因此，B 連接到 T，P 連接到 A。Plus-1 板中的滾珠具有“閥芯正遮蓋”。

注意！

當使用差動液壓缸時，為避免過壓，必須將液壓缸的環形區域連在 A 處。

節流插件

根據主要工作條件，如果在切換過程中可能出現流量超過閥的性能限制的情況，就需要使用節流插件。

示例：

蓄能器工作，

作為先導控制閥與內部先導控制液壓油分流結合使用。

二位二通和二位三通方向座閥

節流插件插入到座閥的油口 P 中。

二位四通方向座閥

節流插件插入到 Plus-1 板的油口 P 中

單向閥插件

單向閥插件允許流體從 P 自由流向 A，并能夠無泄漏阻止從 A 到 P 的流動。

二位二通和二位三通方向座閥

單向閥插件插入到座閥的油口 P 中。

二位四通方向座閥

單向閥插件插入到 Plus-1 板的油口 P 中。

德國力士樂REXROTH電磁閥座訂貨號和型號：

R900029848 M-2SED6PK1X/350CG24Z4SO700

R901175879 M-2SED6PK1X/350CG28N9K4

R901321020 M-2SED6PK1X/350CG48N9K4

R900247752 M-2SED6PK1X/350CG96N9K4

R901261007 M-2SED6PK1X/350CG96N9K4/B18

R901147878 M-2SED6PK1X/350CG96N9K4QMBG24

R900207579 M-3SED6C1X/350CG110N9K4

R900059764 M-3SED6C1X/350CG110N9K4/B10

R900082119 M-3SED6C1X/350CG110N9K4/B12

R900221688 M-3SED6C1X/350CG110N9K4/B18

R900033292 M-3SED6C1X/350CG110N9Z4

R900054398 M-3SED6C1X/350CG110N9Z4/B22

R900034900 M-3SED6C1X/350CG110N9Z5L

R900205600 M-3SED6C1X/350CG125N9K4

R900222291 M-3SED6C1X/350CG125N9K4/B12

R900569340 M-3SED6C1X/350CG125N9Z4

R900076486 M-3SED6C1X/350CG125N9Z4/B08SO290

R900052270 M-3SED6C1X/350CG125N9Z4/B12

R900215331 M-3SED6C1X/350CG12N9K4

R900223334 M-3SED6C1X/350CG12N9K4/V

R900083151 M-3SED6C1X/350CG12N9Z4

R900033291 M-3SED6C1X/350CG12N9Z4/B20

R900065030 M-3SED6C1X/350CG196N9K4

R900220798 M-3SED6C1X/350CG196N9K4/B00

R900213535 M-3SED6C1X/350CG196N9K4/V

R900572181 M-3SED6C1X/350CG196N9Z4

R900032805 M-3SED6C1X/350CG196N9Z5L/B15

R900208943 M-3SED6C1X/350CG205N9EXZ2

R900088222 M-3SED6C1X/350CG205N9K4

R900208280 M-3SED6C1X/350CG205N9K4SO321

R900217352 M-3SED6C1X/350CG205N9K4/B10

R900210179 M-3SED6C1X/350CG205N9K4/B12

R900221261 M-3SED6C1X/350CG205N9K4/B18

R900213168 M-3SED6C1X/350CG205N9K4/B20

R900212877 M-3SED6C1X/350CG205N9K4/V

R900218142 M-3SED6C1X/350CG205Z2/VSO321

R900076394 M-3SED6C1X/350CG220N9K4

R900209228 M-3SED6C1X/350CG220N9K4SO290

R900220603 M-3SED6C1X/350CG220N9K4/B12SO290

R900059989 M-3SED6C1X/350CG220N9K4/P

R900076857 M-3SED6C1X/350CG220N9Z4

R900077745 M-3SED6C1X/350CG220N9Z4/B20

R900059154 M-3SED6C1X/350CG220N9Z5LSO290

R900212467 M-3SED6C1X/350CG240K4

R900204545 M-3SED6C1X/350CG240N9K4

R900059512 M-3SED6C1X/350CG240N9Z4/B10

R900022853 M-3SED6C1X/350CG24K4

R900021651 M-3SED6C1X/350CG24K4/B08

R900089231 M-3SED6C1X/350CG24K4/B12

R900054654 M-3SED6C1X/350CG24K4/B12SO321

R900204497 M-3SED6C1X/350CG24K4=CSA

R900080791 M-3SED6C1X/350CG24N9/VSO321

R900211774 M-3SED6C1X/350CG24N9EXZ2

R900224109 M-3SED6C1X/350CG24N9EXZ2SO321

R900205276 M-3SED6C1X/350CG24N9EXZ2/P

R900566611 M-3SED6C1X/350CG24N9K4

R900213675 M-3SED6C1X/350CG24N9K4SO290

R900052268 M-3SED6C1X/350CG24N9K4/B08

R900220970 M-3SED6C1X/350CG24N9K4/B08V

R900208807 M-3SED6C1X/350CG24N9K4/B10

R900085406 M-3SED6C1X/350CG24N9K4/B12

R900209241 M-3SED6C1X/350CG24N9K4/B12MH

R900223440 M-3SED6C1X/350CG24N9K4/B12V

R900571173 M-3SED6C1X/350CG24N9K4/B15

R900203758 M-3SED6C1X/350CG24N9K4/B15V

R900053609 M-3SED6C1X/350CG24N9K4/B18

R900204161 M-3SED6C1X/350CG24N9K4/B18MH

R900208650 M-3SED6C1X/350CG24N9K4/B20

R900209872 M-3SED6C1X/350CG24N9K4/B22

R900222703 M-3SED6C1X/350CG24N9K4/B22SO290

R900223351 M-3SED6C1X/350CG24N9K4/MK

R900571543 M-3SED6C1X/350CG24N9K4/P

R900081992 M-3SED6C1X/350CG24N9K4/V

R900207700 M-3SED6C1X/350CG24N9K4=CSA

R900216371 M-3SED6C1X/350CG24N9Z2SO589

R900566612 M-3SED6C1X/350CG24N9Z4

R900071316 M-3SED6C1X/350CG24N9Z4SO290

R900022589 M-3SED6C1X/350CG24N9Z4SO700

R900021784 M-3SED6C1X/350CG24N9Z4/B10

R900033377 M-3SED6C1X/350CG24N9Z4/B12

R900033374 M-3SED6C1X/350CG24N9Z4/B15

R900033375 M-3SED6C1X/350CG24N9Z4/B18

R900033373 M-3SED6C1X/350CG24N9Z4/B20

R900033376 M-3SED6C1X/350CG24N9Z4/B22

R900078043 M-3SED6C1X/350CG24N9Z4/MT

R900573646 M-3SED6C1X/350CG24N9Z4/P

R900073359 M-3SED6C1X/350CG24N9Z4/V

R900571980 M-3SED6C1X/350CG24N9Z5L

R900072470 M-3SED6C1X/350CG24N9Z5L/B08

R900570526 M-3SED6C1X/350CG24N9Z5L/B12

R900083976 M-3SED6C1X/350CG24N9Z5L/B12V

R900050485 M-3SED6C1X/350CG24N9Z5L/B15

R900030770 M-3SED6C1X/350CG24N9Z5L/B18

R900057881 M-3SED6C1X/350CG24N9Z5L/B18MH

R900076450 M-3SED6C1X/350CG24N9Z5L/B18V

R900070127 M-3SED6C1X/350CG24N9Z5L/B20

R900022756 M-3SED6C1X/350CG24N9Z5L/B20V

R900072112 M-3SED6C1X/350CG24N9Z5L/B22

R900572996 M-3SED6C1X/350CG24N9Z5L/P

R900075441 M-3SED6C1X/350CG24N9Z5L/V

R900031055 M-3SED6C1X/350CG24N9Z5L1

R900072178 M-3SED6C1X/350CG24N9Z5L1SO290

R900065933 M-3SED6C1X/350CG24N9Z5L1/B12

R900070435 M-3SED6C1X/350CG24N9Z5L1/B15

R900066616 M-3SED6C1X/350CG24N9Z5L1/B20

R900089828 M-3SED6C1X/350CG24N9Z5L1/P

R900072073 M-3SED6C1X/350CG24N9Z5L2

R900061090 M-3SED6C1X/350CG24N9Z5L2/B18

R900080447 M-3SED6C1X/350CG24N9Z5L2/V

R900034902 M-3SED6C1X/350CG24Z4

R900065190 M-3SED6C1X/350CG24Z4/P

R900065191 M-3SED6C1X/350CG24Z5L1/P

R900214807 M-3SED6C1X/350CG28N9K4

R900213702 M-3SED6C1X/350CG42N9K4

R900222551 M-3SED6C1X/350CG48N9EXZ2

R900065026 M-3SED6C1X/350CG48N9K4

R900222420 M-3SED6C1X/350CG48N9K4SO290

R900082597 M-3SED6C1X/350CG48N9K4/B12

R900216748 M-3SED6C1X/350CG48N9K4/P

R900053777 M-3SED6C1X/350CG48N9K4/V

R900065970 M-3SED6C1X/350CG48N9Z4

R900049860 M-3SED6C1X/350CG48N9Z5L/V

R900078429 M-3SED6C1X/350CG60N9Z4

R900078425 M-3SED6C1X/350CG60N9Z4/B12

R900222410 M-3SED6C1X/350CG96K4

R900222373 M-3SED6C1X/350CG96K4/B20

R900065028 M-3SED6C1X/350CG96N9K4

R900212182 M-3SED6C1X/350CG96N9K4/B12

R900211057 M-3SED6C1X/350CG96N9K4/B12MT

R900203460 M-3SED6C1X/350CG96N9K4/B22=CSA

R900201152 M-3SED6C1X/350CG96N9K4/P

R900054625 M-3SED6C1X/350CG96N9K4/V

R900203313 M-3SED6C1X/350CG96N9K4=CSA

R900073533 M-3SED6C1X/350CG96N9Z4

R900052697 M-3SED6C1X/350CG96N9Z5

R900566613 M-3SED6C1X/350CW110RN9Z5

R900031668 M-3SED6C1X/350CW110RN9Z5/B12

R900078641 M-3SED6C1X/350CW110RN9Z5/B18

R900022788 M-3SED6C1X/350CW110RN9Z5/P

R900051168 M-3SED6C1X/350CW110RN9Z55

R900080968 M-3SED6C1X/350CW110RN9Z55L

R900071627 M-3SED6C1X/350CW110RN9Z5L

R900030378 M-3SED6C1X/350CW110RN9Z5L/B12

R900056216 M-3SED6C1X/350CW110RN9Z5L/V

R900566614 M-3SED6C1X/350CW220RN9Z5

R900085692 M-3SED6C1X/350CW220RN9Z5/B12

R900083247 M-3SED6C1X/350CW220RN9Z5/B18V

R900031461 M-3SED6C1X/350CW220RN9Z5/P

R900073762 M-3SED6C1X/350CW220RN9Z5L

R900066387 M-3SED6C1X/350CW220RN9Z5L/B12V

R900053525 M-3SED6C1X/350CW220RZ5

R900058473 M-3SED6C1X/350CW220RZ5SO702

R900986796 M-3SED6CK1X/350CG110N9EXZ2

R900985630 M-3SED6CK1X/350CG110N9EXZ2/V

R900058333 M-3SED6CK1X/350CG110N9K4

R900224319 M-3SED6CK1X/350CG110N9K4/B10

R900224320 M-3SED6CK1X/350CG110N9K4/B12

R901047512 M-3SED6CK1X/350CG110N9K4/B12V

R900774980 M-3SED6CK1X/350CG110N9K4/B15/V

R900774930 M-3SED6CK1X/350CG110N9K4/B15V

R900224321 M-3SED6CK1X/350CG110N9K4/B18

R901010694 M-3SED6CK1X/350CG110N9K4/B20

R900224323 M-3SED6CK1X/350CG110N9K4/B22

R900249536 M-3SED6CK1X/350CG110N9K4/P

R900223904 M-3SED6CK1X/350CG110N9K4/V

R901365071 M-3SED6CK1X/350CG110N9K4/V/62

R900224322 M-3SED6CK1X/350CG110N9K4QMAG24

R900748521 M-3SED6CK1X/350CG110N9K4QMBG24

R901388858 M-3SED6CK1X/350CG110N9K4QMBG24SO10

R900224328 M-3SED6CK1X/350CG125N9K4

R901024588 M-3SED6CK1X/350CG125N9K4/B08

R901024588 M-3SED6CK1X/350CG125N9K4/B08

R900224329 M-3SED6CK1X/350CG125N9K4/B12

R901244810 M-3SED6CK1X/350CG125N9K4/B15

R900748520 M-3SED6CK1X/350CG125N9K4/B18

R901360913 M-3SED6CK1X/350CG125N9K4/P

R900227684 M-3SED6CK1X/350CG125N9K4/V

R900242580 M-3SED6CK1X/350CG125N9K4QMAG24

R901320365 M-3SED6CK1X/350CG125N9K4QMBG24

R901262042 M-3SED6CK1X/350CG125N9K4QMBG24/B12

R900224325 M-3SED6CK1X/350CG12N9K4

R900224327 M-3SED6CK1X/350CG12N9K4/B20

R901421170 M-3SED6CK1X/350CG12N9K4/P

R900224326 M-3SED6CK1X/350CG12N9K4/V

R901014832 M-3SED6CK1X/350CG140N9K4

R900224331 M-3SED6CK1X/350CG196N9K4

R900224332 M-3SED6CK1X/350CG196N9K4/B00

R900224334 M-3SED6CK1X/350CG196N9K4/B15

R900224333 M-3SED6CK1X/350CG196N9K4/V

R900224494 M-3SED6CK1X/350CG205K4

R900224335 M-3SED6CK1X/350CG205N9EXZ2

R900223863 M-3SED6CK1X/350CG205N9K4

R900224336 M-3SED6CK1X/350CG205N9K4/B10

R900224337 M-3SED6CK1X/350CG205N9K4/B12

R900224338 M-3SED6CK1X/350CG205N9K4/B12V

R901351357 M-3SED6CK1X/350CG205N9K4/B15

R900224339 M-3SED6CK1X/350CG205N9K4/B18

R900224340 M-3SED6CK1X/350CG205N9K4/B18V

R900224341 M-3SED6CK1X/350CG205N9K4/B20

R900778897 M-3SED6CK1X/350CG205N9K4/B22

R900224342 M-3SED6CK1X/350CG205N9K4/P

R900224343 M-3SED6CK1X/350CG205N9K4/V

R901226268 M-3SED6CK1X/350CG205N9K4QMAG24

R900992704 M-3SED6CK1X/350CG205N9K4QMBG24

R900206118 M-3SED6CK1X/350CG220N9K4

R900225579 M-3SED6CK1X/350CG220N9K4/B12

R900224500 M-3SED6CK1X/350CG220N9K4/B20

R900224498 M-3SED6CK1X/350CG220N9K4/P

R900897719 M-3SED6CK1X/350CG220N9K4/V

R900992829 M-3SED6CK1X/350CG220N9K4QMAG24

R901290213 M-3SED6CK1X/350CG220N9K4QMBG24

R900224534 M-3SED6CK1X/350CG240K4

R900224535 M-3SED6CK1X/350CG240N9K4

R900224536 M-3SED6CK1X/350CG240N9K4/B10

R900985676 M-3SED6CK1X/350CG240N9K4/B15

R900986044 M-3SED6CK1X/350CG240N9K4/B20

R901012537 M-3SED6CK1X/350CG240N9K4/V

R900243878 M-3SED6CK1X/350CG24K33L

R900083344 M-3SED6CK1X/350CG24K4

R900224501 M-3SED6CK1X/350CG24K4/B08

R900224502 M-3SED6CK1X/350CG24K4/B12

R901233725 M-3SED6CK1X/350CG24K4/B12/62

R900755107 M-3SED6CK1X/350CG24K4/B22

R901128992 M-3SED6CK1X/350CG24K4/B22V

R900224505 M-3SED6CK1X/350CG24K4/P

R901281409 M-3SED6CK1X/350CG24K4K/V

R900987177 M-3SED6CK1X/350CG24K4QMAG24

R901286236 M-3SED6CK1X/350CG24K4QMBG24

R901255268 M-3SED6CK1X/350CG24K72L

R900230354 M-3SED6CK1X/350CG24N9EXZ2

R900224507 M-3SED6CK1X/350CG24N9EXZ2

R900710441 M-3SED6CK1X/350CG24N9EXZ2/B08

R900227366 M-3SED6CK1X/350CG24N9EXZ2/B12

R900224508 M-3SED6CK1X/350CG24N9EXZ2/P

R900211196 M-3SED6CK1X/350CG24N9EXZ2/V

R900757417 M-3SED6CK1X/350CG24N9K33L

R900994785 M-3SED6CK1X/350CG24N9K33LSO407

R901096901 M-3SED6CK1X/350CG24N9K33L/P=AN

R900729267 M-3SED6CK1X/350CG24N9K33L=AN

R900052392 M-3SED6CK1X/350CG24N9K4

R987309875 M-3SED6CK1X/350CG24N9K4+WTYCZKA

R901185596 M-3SED6CK1X/350CG24N9K4SO219

R901261630 M-3SED6CK1X/350CG24N9K4/62

R900226143 M-3SED6CK1X/350CG24N9K4/B00

R900226191 M-3SED6CK1X/350CG24N9K4/B00V

R900741047 M-3SED6CK1X/350CG24N9K4/B06

R900224510 M-3SED6CK1X/350CG24N9K4/B08

R901326548 M-3SED6CK1X/350CG24N9K4/B08=CSA

R900224511 M-3SED6CK1X/350CG24N9K4/B08V

R900224512 M-3SED6CK1X/350CG24N9K4/B10

R901364983 M-3SED6CK1X/350CG24N9K4/B10V

R900200031 M-3SED6CK1X/350CG24N9K4/B12

R901022234 M-3SED6CK1X/350CG24N9K4/B12MK

R900224514 M-3SED6CK1X/350CG24N9K4/B12V

R900224515 M-3SED6CK1X/350CG24N9K4/B15

R900224516 M-3SED6CK1X/350CG24N9K4/B15V

R900224517 M-3SED6CK1X/350CG24N9K4/B18

R900224519 M-3SED6CK1X/350CG24N9K4/B18V

R900224520 M-3SED6CK1X/350CG24N9K4/B20

R900224521 M-3SED6CK1X/350CG24N9K4/B20V

R900224522 M-3SED6CK1X/350CG24N9K4/B22

R901119188 M-3SED6CK1X/350CG24N9K4/B25

R900223864 M-3SED6CK1X/350CG24N9K4/P

R901300338 M-3SED6CK1X/350CG24N9K4/P=CSA

R900986332 M-3SED6CK1X/350CG24N9K4/PV

R900224526 M-3SED6CK1X/350CG24N9K4/V

R901116334 M-3SED6CK1X/350CG24N9K45L

R901222197 M-3SED6CK1X/350CG24N9K45L/P

R901002969 M-3SED6CK1X/350CG24N9K4=AN

R900225153 M-3SED6CK1X/350CG24N9K4=LB

R901018633 M-3SED6CK1X/350CG24N9K4K

R900784050 M-3SED6CK1X/350CG24N9K4K/P

R901278151 M-3SED6CK1X/350CG24N9K4K/V

R900214055 M-3SED6CK1X/350CG24N9K4QMAG24

R901001627 M-3SED6CK1X/350CG24N9K4QMAG24/B12

R901236424 M-3SED6CK1X/350CG24N9K4QMAG24/B12V

R901418722 M-3SED6CK1X/350CG24N9K4QMAG24/B15

R900753436 M-3SED6CK1X/350CG24N9K4QMAG24/P

R901132414 M-3SED6CK1X/350CG24N9K4QMAG24/PV

R901249674 M-3SED6CK1X/350CG24N9K4QMAG24/V

R900224529 M-3SED6CK1X/350CG24N9K4QMBG24

R900618748 M-3SED6CK1X/350CG24N9K4QMBG24/B10V

R901079034 M-3SED6CK1X/350CG24N9K4QMBG24/B12

R901215423 M-3SED6CK1X/350CG24N9K4QMBG24/P

R901266835 M-3SED6CK1X/350CG24N9K4QMBG24/V

R901235527 M-3SED6CK1X/350CG24N9K72L

R901434741 M-3SED6CK1X/350CG24N9K72L/B18

R901256934 M-3SED6CK1X/350CG24N9K72L/P

R901235528 M-3SED6CK1X/350CG24N9K72L/P=AN

R901260862 M-3SED6CK1X/350CG24N9K72L=AN

R901351454 M-3SED6CK1X/350CG24N9K72LQMAG24

R901325698 M-3SED6CK1X/350CG24N9K72LQMBG24

R901257167 M-3SED6CK1X/350CG24N9K73L

R901342021 M-3SED6CK1X/350CG24N9K73L/P

R900088868 M-3SED6CK1X/350CG24N9Z4/V

R900056217 M-3SED6CK1X/350CG24N9Z5L

R901242005 M-3SED6CK1X/350CG26N9K40

R900787136 M-3SED6CK1X/350CG28K10MIL02

R900224537 M-3SED6CK1X/350CG28N9K4

R901269086 M-3SED6CK1X/350CG28N9K4/P

R901291469 M-3SED6CK1X/350CG28N9K4/V

R901174742 M-3SED6CK1X/350CG28NK10MIL02
