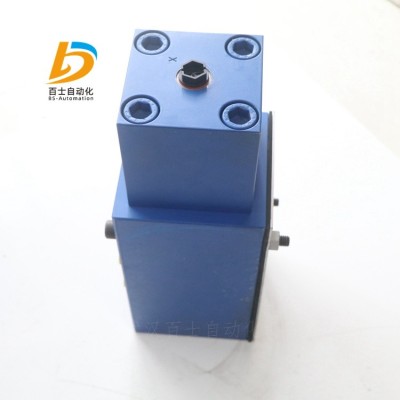

壓力補償器R900513337 FD32PA21/B06V力士樂原裝正品

武漢百士自動化設備有限公司主營銷售產品，產品實拍，原裝正品，客戶買的安心，用的放心。常用產品現

貨供應，歡迎新老客戶詢價采購！

產品簡介：

力士樂REXROTH進油口壓力補償器，直動式

ZDC 10...32

規格 10, 16, 25, 32

重量  3kg, 3.5kg, 8.9kg, 64.7kg

組件系列 2X

大工作壓力 350 bar

大流量 520 l/min

溫度范圍  -20 … +70℃

粘度范圍  15 … 380mm2/s

疊加閥

孔圖按 ISO 4401

通過安裝的梭閥為通道 P → A 或 P → B 提供負載補償

二通型號“P”

三通型號“PT”(NG10 ... 25)

與比例方向閥相互作用時的流量控制

ZDC 型號的閥門為兩通或三通型直動式入口壓力補償器。

它們在通道 P 中被用作入口壓力補償器以提供負載補償。

這些閥門的基本構成為殼體、控制閥芯、帶有彈簧座 的壓縮彈簧和帶有已安裝梭閥 的罩蓋。

如果壓差 P1 → A1 或 P1 → B1 小于 10 bar，則壓縮彈簧使控制閥芯保持在 P2 到 P1 的打開位置。

如果壓差超過 10 bar，則控制閥芯向左移動直至壓差再次復位。

先導式比例方向閥可與入口壓力補償器配合用于“外部先導油供油”！

在 外部 先導油供油時，與通道 P 的連接將被堵塞。先導油由單獨的控制電路采樣。

在 內部 先導油供油時，與通道 P 的連接將被打開。先導油從壓力補償器節流側上游位置采樣（底板的油口 X 被堵塞）。

博世力士樂（BOSCH-REXROTH）壓力閥限制、控制和調節液壓系統中的工作壓力，從而影響液壓驅動器的功率。

力士樂REXROTH壓力補償器ZDC16P-2X/XM

R900489669

公稱尺寸 16，P2 → P1，機械操作

高性能范圍內的工業液壓閥。在選定的連接處實現可靠的壓力平衡。

滑閥

直動式

連接圖 ISO 4401-07-07-0-05

大壓力 [bar] 350

大體積流量 [l/min] 150

活塞符號 P2 → P1

連接類型 中間組裝

標稱尺寸 16

連接數 4

電源電壓 24 VDC

液壓油 HL,HLP,HLPD,HVLP,HVLPD,HFC

密封 NBR

重量 [kg] 5.06

德國力士樂REXROTH壓力補償器訂貨號和型號：

力士樂平衡閥

R900230188 FD16FB2X/400-320B03V

R901056572 FD16FB2X=400-320B03V=MG

R900989666 FD25FB2X/400-320B04V

R901325630 FD25FB2X=400-320B03V=MG

R901056573 FD25FB2X=400-320B04V=MG

R900599662 FD32FA2X/B00V

R900521670 FD32FA2X/B00V-006

R900515618 FD32FA2X/B03V

R900565496 FD32FA2X/B04V

R900512105 FD32FA2X/B06V

R900526450 FD32FA2X/B06V-006

R900504246 FD32FA2X/B06V12

R900035993 FD32FA2X/B08V12

R901005516 FD32FA2X/JB08V

R900088048 FD32FB2X/200B00V

R900518400 FD32FB2X/200B04V

R900053748 FD32FB2X/200B04V-006

R900532404 FD32FB2X/200B04V12

R900515258 FD32FB2X/200B06V

R900063661 FD32FB2X/200B06V12

R900211411 FD32FB2X/200JB06V

R900525176 FD32FB2X/300B00V

R900987598 FD32FB2X/300B00V-077

R900524205 FD32FB2X/300B03V

R900513235 FD32FB2X/300B04V

R900517189 FD32FB2X/300B06V

R900503530 FD32FB2X/300B06V-006

R900987798 FD32FB2X/400B06V-006

R901051989 FD32FB2X/400B06V-028

R901052498 FD32FB2X/400B06V-029

R900034273 FD32FB2X/400B06V-067

R900079174 FD32FB2X/400B06V-068

R901049531 FD32FB2X/400B06V-078

R900707934 FD32FB2X/400B06V-080

R900721247 FD32FB2X/400B06V-081

R901082122 FD32FB2X/400B06V-082

R901197159 FD32FB2X/400B06V-083

R901282621 FD32FB2X/400B06V-100

R900516153 FD32FB2X/400B06V12

R901100160 FD32FB2X/400B08V-078

R901120253 FD32FB2X=400B04V-028=NO

R901468517 FD32FB2X=400B04V-085=NO

R901137251 FD32FB2X=400B06V-078=CO

R900518729 FD32KA2X/B00V

R900515067 FD32KA2X/B00V12

R900523558 FD32KA2X/B04V

R901031554 FD32KA2X/B06M

R900561332 FD32FB2X/300B06V12

R900513096 FD32FB2X/300JB06V

R901064602 FD32FB2X/400-350B06V

R900521395 FD32FB2X/400B00V

R900521020 FD32FB2X/400B04V

R901475434 FD32FB2X/400B04V-028 *IAM

R900783011 FD32FB2X/400B06M-067

R900750225 FD32FB2X/400B06MT-080

R900513267 FD32FB2X/400B06V

R900512726 FD32FB2X/400B06V-002

R900515096 FD32PA2X/B03V

R900987584 FD32PA2X/B03V12

R900515264 FD32PA2X/B04V

R900532547 FD32PA2X/B04V12

R901476599 FD32PA2X/B06M

R900513337 FD32PA2X/B06V

R900523603 FD32PA2X/B06V-002

R901128739 FD32PA2X/B06V-003

R900536621 FD32PA2X/B06V-006

R900740056 FD32PA2X/B06V-014

R900742004 FD32PA2X/B06V-063

R900776644 FD32PA2X/B06V-079

R900516657 FD32PA2X/B06V12

R900720311 FD32PA2X/JB06V

R900230371 FD32PA2X/JB08V

R987227808 FD-224/32-24V.CC

R978904579 FD32FB2X/200B06V12 SO43A-1569

R150234076 FDM-E-C 32X10RX3,969-5

R150231075 FDM-E-C 32X5RX3,5-4

R1512340B0 FDM-E-D 32X10RX3,969-5

R900519010 FD32KA2X/B06V

R900073261 FD32KA2X/B06V-006

R900515053 FD32KA2X/B06V12

R901101829 FD32KA2X/B08V

R900241972 FD32KA2X/JB06V

R900522444 FD32PA2X/B00V

R900524381 FD32PA2X/B00V-006

R900059770 FD32PA2X/B00V-072

R900212748 FD32PA2X/B00V-073

R900513774 FD32PA2X/B00V12

R996012785 ABG-032,BLOCK,160,M-00460,FD16,6-SAE11:4

R409021152 BLOCK HUO 1611-FD16 - FD16FA2X/B03V

R409021153 BLOCK HUO 1611-FD25/FD16 + SANDWICHPLATE

R900620246 BUCHSE FD16K20/M42A105B105C105D220-016

R900146784 BUCHSE FD16K20/M42A220B220C420D420

R900507278 FD16FA2X/B00V

R900503670 FD16FA2X/B00V-006

R900062504 FD16FA2X/B00V-016

R900566344 FD16FA2X/B00V-054

R901475630 FD16FA2X/B03M

R900500189 FD16FA2X/B03V

R900510538 FD16FA2X/B03V-006

R900525884 FD16FA2X/B03V12

R900505675 FD16FA2X/B04V

R900537390 FD16FA2X/B04V-016

R900158752 BUCHSE FD16K20/M42A220B224C230D218E410

R900830067 BUCHSE FD16K21/D38,0 / 45,9 X 36,0-064

R900826341 BUCHSE FD16K21/D38,0 / 45,9 X 38,0

R900829851 BUCHSE FD16K21/D38,0 / 45,9 X 38,0-010

R900193257 CONE FD16KA12/D 9Z11-481

R900648243 CONE FD16KA20/

R900826168 CONE FD16KA21/D 9Z11

R900156363 EINBAUZ. FD 16/25/32 F.2X/-006

R900855816 ERSATZTEIL FD 16-21/-069

R901055793 ERSATZTEIL FD 16__2X/V BUCHSE *BG

R900549565 FD16FA2X/B04V-023

R900518480 FD16FA2X/B05V

R900505674 FD16FA2X/B06V

R900510333 FD16FA2X/B08V

R900510332 FD16FA2X/B08V-006

R900747831 FD16FA2X/B08V-023

R900072372 FD16FA2X=B05V-005=PL

R900454892 FD16FB1X/200B03

R900471157 FD16FB1X/400B00

R900503975 FD16FB2X/000B05V-020

R901493806 FD16FB2X/200B00M

R900500755 FD16FB2X/200B00V

R900509912 FD16FB2X/200B00V-012

R901474737 FD16FB2X/200B03M

R900504053 FD16FB2X/200B03V

R900757404 FD16FB2X/200B03V-006

R900514160 FD16FB2X/200B03V12

R901055497 FD16FB2X/200B04V

R900504315 FD16FB2X/200B06V

R900503579 FD16FB2X/300B00V

R901056572 FD16FB2X=400-320B03V=MG

R900505673 FD16KA2X/B00V

R900503974 FD16KA2X/B03V

R900537292 FD16KA2X/B03V12

R900534240 FD16KA2X/B03V12-006

R900506079 FD16KA2X/B06V

R900519406 FD16KA2X/JB03V

R900503671 FD16PA2X/B00V

R900536674 FD16PA2X/B00V-003

R900510437 FD16PA2X/B00V-006

R900783012 FD16FB2X/400B03M

R900599660 FD16FB2X/400B03V

R900512606 FD16FB2X/400B03V-006

R901027234 FD16FB2X/400B03V-078

R900503977 FD16FB2X/400B03V12

R900506196 FD16FB2X/400B04V

R900776987 FD16FB2X/400B05V

R900227420 FD16FB2X/400B05V-075

R901494943 FD16FB2X/400B06V-100

R900519777 FD16FB2X/400B08V-064

R900506101 FD16PA2X/B00V12

R901070179 FD16PA2X/B03M

R900500190 FD16PA2X/B03V

R900533002 FD16PA2X/B03V-003

R900509442 FD16PA2X/B03V-006

R900503489 FD16PA2X/B03V12

R900503411 FD16PA2X/B04V

R900519900 FD16PA2X/B05V

R900517537 FD16PA2X/B06V

R900503370 FD16PA2X/B06V-006

R900504003 FD16FB2X/300B03V

R900538317 FD16FB2X/300B03V-006

R900512756 FD16FB2X/300B03V12

R900506957 FD16FB2X/300B04V

R900509690 FD16FB2X/300B06V

R900511059 FD16FB2X/300JB03V

R901329290 FD16FB2X/400-250B03V

R900230188 FD16FB2X/400-320B03V

R900503372 FD16FB2X/400B00V

R900079239 FD16FB2X/400B00V12

R900538757 FD16PA2X/JB00V

R900068701 FD16PA2X/JB03V

R900248814 FD16PA2X/JB04V
