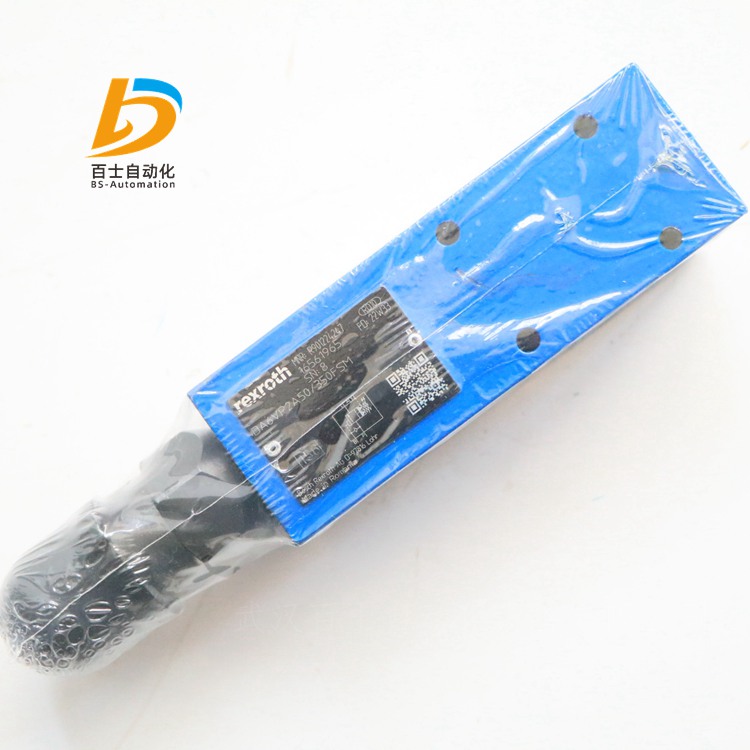

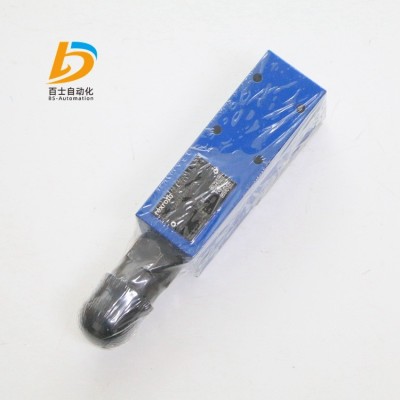

德國力士樂R901224247 DA6VP2A50/350FSM壓力切斷閥

武漢百士自動化設備有限公司主營銷售產品，產品實拍，原裝正品，客戶買的安心，用的放心。常用產品現

貨供應，歡迎新老客戶詢價采購！

產品簡介：

力士樂REXROTH先導式壓力截止閥

DA6V

規格 6

組件系列 5X

大工作壓力 350 bar

大流量 40 l/min

重量   2.2kg

安裝位置   任意

溫度范圍   -30 … +80℃

粘度范圍   10 … 800mm2/s

建議粘度范圍  20 … 60mm2/s

用于底板安裝

油口安裝面符合 ISO 5781-03-04-0-00（不符合標準，且不帶孔）

底板（單獨訂購）

作為插裝閥

調整類型：六角套筒和保護帽

4 個壓力等級

可調式切換壓差（公稱值的 10 % 至 50 %）

DA6V 型壓力閥是一種可無級調節切換壓差的先導式壓力截止閥。此類閥主要由擰入式插裝閥的先導控制級和主級、單向閥和殼

體組成。

通過油口 B 將 P 中的泵流量引入系統的蓄能器中。如果油口 B 中執行機構的壓力超過設定頂部切換壓力，則先導控制閥將打開

并將通過油口 A (Y) 啟動先導油排放。單向閥將關閉油口 B 至 P 的連接，且泵流量將切換到卸壓油路（從 P 到T）。

型號 DA6VP

將泵流量從 P 至 B（泵 → 執行機構）切換為 P 至 T（泵 → 油箱）。

泵通過單向閥向液壓系統（P 至 B）供油。通道 B 中的壓力通過控制油路和孔作用于擰入式插裝閥 的先導控制。同時，通道 P

中的壓力通過孔施加于主控制閥芯的彈簧負載側。當在擰入式插裝閥 中通過調節主軸設置的頂部截止壓力到達液壓系統（通道

B）時，擰入式插裝閥 的先導控制將打開從主閥芯的彈簧負載側到控制油路的連接和通過油口 A (Y) 進入油箱的外部連接。由于

存在孔，在主閥芯處產生了壓降。主閥芯將升離閥座，打開 P 至 T 的連接。單向閥關閉 B 至 P 的連接，而擰入式插裝閥 的先

導控制在 B 中執行機構壓力的作用下保持在打開位置。

將泵流量從 P 至 T（泵 → 油箱）切換為 P 至 B（泵 → 執行機構）。

如果根據在調節主軸處設定的較低底部壓力值，B 中的執行機構壓力與截止壓力相比較有所下降，則擰入式插裝閥 的先導控制

將設置回其初始位置。

這樣，壓力將主閥芯的彈簧負載側累積。從而通過彈簧關閉從 P 到 T 的連接，并且泵將通過單向閥向液壓系統，即從 P 到 B 進

行供油。

型號 DA6VA

在此閥型號中，泵壓力口不是在 P 中，而是在 A 中設計的。閥門將泵流量從 A 引至 P 或從 A 引至 T。泄油口位于 B (Y) 中。

切換過程與型號“VP”（此閥型號支持油路塊連接）相對應。

注意！

僅限間接壓力限制功能：

泵壓力（至油箱）的壓力限制功能不是直接提供的，而是僅通過執行機構通道中的單向閥和控制油路間接提供。

設置切換壓差：

出廠時，閥門被設置為切換壓差約為公稱壓力的 10 % 至 12 %。可以設置為公稱壓力的 50 %。

交付時，調節主軸被設置為小可調節頂部切換壓力，即將調節主軸擰出到限位止擋。

通過擰入調節主軸，可增大頂部切換壓力。

通過擰入調節主軸，可增大底部切換壓力而切換壓差將減小。通過擰出調節主軸，可減小底部切換壓力而切換壓差將增加。

通過鎖緊螺釘和鎖緊螺母 確保壓力調節。

應用注意事項：

在壓力截止閥和液壓蓄能器之間建立一個低流阻的短連接。

注意！

僅可使用合適的蓄能器安全設備操作蓄能器！

泵壓力（至油箱）的壓力限制功能不是直接提供的，而是僅通過執行機構通道中的單向閥和控制油路間接提供。

注意： 切換壓差出廠設置

出廠時，閥門被設置為切換壓差約為公稱壓力的 10 % 至 12 %，并且是在已卸壓狀態（調節主軸擰出到限位止擋，請參閱產

品說明）下提供的。

調節是在公稱壓力、泵流量約為 10 l/min、執行機構流量約為 2 l/min 的條件下實現的。

不同的系統條件（尤其是泵流量和執行機構流量很高時）可能導致較高的切換壓力。在這里，通過此閥可以選擇性地調節系統

切換壓差。

德國力士樂REXROTH壓力切斷閥訂貨號和型號：

力士樂REXROTH先導式壓力切斷閥DA 6 V

R901224217 DA6VA2A5X/100FSM

R901224217 DA6VA2A50/100FSM

R987400141 DA6VA2A5X/100FSMSO26-746

R901184163 DA6VA2A5X/100FSV

R901224218 DA6VA2A5X/200FSM

R901184165 DA6VA2A5X/200FSV

R901224223 DA6VA2A5X/350FSM

R901184169 DA6VA2A5X/350FSV

R901224225 DA6VA2A5X/50FSM

R901184162 DA6VA2A5X/50FSV

R901224226 DA6VA2B5X/100FSM

R901184669 DA6VA2B5X/100FSV

R901224246 DA6VA2B5X/200FSM

R901184173 DA6VA2B5X/200FSV

R901224228 DA6VA2B5X/350FSM

R901184176 DA6VA2B5X/350FSV

R901224230 DA6VA2B5X/50FSM

R901184170 DA6VA2B5X/50FSV

R901224232 DA6VP2A5X/100FSM

R901184158 DA6VP2A5X/100FSV

R901224233 DA6VP2A5X/200FSM

R901224233 DA6VP2A50/200FSM

R901311545 DA6VP2A5X/200FSM/60

R901184160 DA6VP2A5X/200FSV

R901368965 DA6VP2A5X/200FSV/60

R901224247 DA6VP2A5X/350FSM

R901184161 DA6VP2A5X/350FSV

R901224234 DA6VP2A5X/50FSM

R901184151 DA6VP2A5X/50FSV

R901224235 DA6VP2B5X/100FSM

R901184179 DA6VP2B5X/100FSV

R901224238 DA6VP2B5X/200FSM

R901224238 DA6VP2B50/200FSM

R901184183 DA6VP2B5X/200FSV

R901224242 DA6VP2B5X/350FSM

R901184186 DA6VP2B5X/350FSV

R901224244 DA6VP2B5X/50FSM

R901184177 DA6VP2B5X/50FSV

力士樂REXROTH先導式壓力切斷閥DA

R900598573 DA10-.-5X/...VSO26

R900926229 DA10-1-5X/100-10

R901284384 DA10-1-5X/100-10V

R900555658 DA10-1-5X/100-10Y

R900500650 DA10-1-5X/100-17

R900500480 DA10-1-5X/100-17Y

R901011277 DA10-1-5X/200-10

R900570967 DA10-1-5X/200-10Y

R900599453 DA10-1-5X/200-17

R900599979 DA10-1-5X/200-17Y

R900597597 DA10-1-5X/200-17Y/12

R900948351 DA10-1-5X/315-10

R901059701 DA10-1-5X/315-10V

R900519891 DA10-1-5X/315-10Y

R900505050 DA10-1-5X/315-17

R900597599 DA10-1-5X/315-17/12

R901016565 DA10-1-5X/315-17V

R900503486 DA10-1-5X/315-17Y

R900781534 DA10-1-5X/315-17Y/12

R900951672 DA10-1-5X/315-17YV

R900742930 DA10-1-5X/50-10

R900551640 DA10-1-5X/50-17

R900958395 DA10-1-5X/50-17Y

R901097836 DA10-1-5X/50P35-17

R900557180 DA10-1-5X=315-17/12

R900593066 DA10-2-3X/315XSO45

R900375977 DA10-2-3X/315XSO45

R901185154 DA10-2-5X/100-080-17Y

R900597976 DA10-2-5X/100-10

R978865666 DA10-2-5X/100-10/12

R900521127 DA10-2-5X/100-10Y

R901437126 DA10-2-5X/100-10YV/12

R900597357 DA10-2-5X/100-17

R900597290 DA10-2-5X/100-17V

R901175015 DA10-2-5X/100-17V/12

R900597504 DA10-2-5X/100-17Y

R978864876 DA10-2-5X/100-17Y/12

R900500005 DA10-2-5X/100-17YV

R901328234 DA10-2-5X/100-FSY

R900931206 DA10-2-5X/160-17

R900701912 DA10-2-5X/160-17Y

R900504453 DA10-2-5X/200-10

R900746481 DA10-2-5X/200-10V

R900597118 DA10-2-5X/200-10Y

R900529071 DA10-2-5X/200-10YSO51

R900516609 DA10-2-5X/200-10YSO65

R900597015 DA10-2-5X/200-17

R900563179 DA10-2-5X/200-17/12

R900572165 DA10-2-5X/200-17J

R900917909 DA10-2-5X/200-17V

R900597016 DA10-2-5X/200-17Y

R900546354 DA10-2-5X/200-17YSO65

R900740745 DA10-2-5X/200-17Y/12

R987253258 DA10-2-5X/200-17YV

R901241954 DA10-2-5X/200-FS

R901415388 DA10-2-5X/200-FSB07Y

R901360820 DA10-2-5X/200-FSY

R900533467 DA10-2-5X/315-00SO70

R900596908 DA10-2-5X/315-10

R900562533 DA10-2-5X/315-10SO65

R900505038 DA10-2-5X/315-10/12

R900572868 DA10-2-5X/315-10/12SO64

R900572868 DA10-2-5X/315-10/12SO64

R900950226 DA10-2-5X/315-10V

R900598275 DA10-2-5X/315-10Y

R900521865 DA10-2-5X/315-10YSO65

R900521865 DA10-2-5X/315-10YSO65

R900702698 DA10-2-5X/315-10YV

R978030273 DA10-2-5X/315-10YV/12

R900596998 DA10-2-5X/315-17

R900519859 DA10-2-5X/315-17SO66

R900599741 DA10-2-5X/315-17/12

R900514820 DA10-2-5X/315-17/12SO64

R900506970 DA10-2-5X/315-17V

R900596762 DA10-2-5X/315-17Y

R900941546 DA10-2-5X/315-17Y/12

R901101780 DA10-2-5X/315-280-10Y

R901094311 DA10-2-5X/315-280-17

R901396225 DA10-2-5X/315-FS

R901217044 DA10-2-5X/315-FSB07

R900507095 DA10-2-5X/50-10

R900521879 DA10-2-5X/50-10SO51

R900951908 DA10-2-5X/50-10Y

R900562925 DA10-2-5X/50-17

R901346305 DA10-2-5X/50-17J

R900533383 DA10-2-5X/50-17Y

R901354530 DA10-2-5X/50-FS

R901432916 DA10-2-5X/50-FSY

R901186245 DA10-2-5X=100-080-17Y

R900608728 DA10-2-5X=200-17

R900907303 DA10-2-5X=315-17

R900945274 DA10-3-5X/100-10

R900523909 DA10-3-5X/100-10Y

R900515881 DA10-3-5X/100-17

R900501040 DA10-3-5X/100-17Y

R900525700 DA10-3-5X/200-10

R900528302 DA10-3-5X/200-10Y

R900501819 DA10-3-5X/200-17

R900931192 DA10-3-5X/200-17/12

R900518689 DA10-3-5X/200-17Y

R900779831 DA10-3-5X/315-10

R900563379 DA10-3-5X/315-10Y

R900503840 DA10-3-5X/315-17

R900504641 DA10-3-5X/315-17Y

R900957509 DA10-3-5X/50-10

R900551092 DA10-3-5X/50-17

R901141564 DA10-7-5X/100-10

R900510443 DA10-7-5X/100-17

R901106508 DA10-7-5X/200-10

R900929907 DA10-7-5X/200-10Y

R900559994 DA10-7-5X/315-17

R900522059 DA20-.-5X/...

R900507589 DA20-1-5X/100-10

R900534710 DA20-1-5X/100-10Y

R900598619 DA20-1-5X/100-17

R900757899 DA20-1-5X/100-17V

R900598744 DA20-1-5X/100-17Y

R900907086 DA20-1-5X/200-10

R900597612 DA20-1-5X/200-10Y

R900573234 DA20-1-5X/200-10YV

R900503335 DA20-1-5X/200-17

R900938625 DA20-1-5X/200-17V

R900596630 DA20-1-5X/200-17Y

R900780056 DA20-1-5X/315-10

R900511366 DA20-1-5X/315-10V

R900716439 DA20-1-5X/315-10Y

R900594108 DA20-1-5X/315-17

R900500655 DA20-1-5X/315-17V

R900598535 DA20-1-5X/315-17Y

R901272533 DA20-1-5X/50-10

R900572008 DA20-1-5X/50-17Y

R900597959 DA20-2-5X/100-10

R900501020 DA20-2-5X/100-10Y

R900939819 DA20-2-5X/100-10YV

R900596761 DA20-2-5X/100-17

R900511435 DA20-2-5X/100-17/12

R900597271 DA20-2-5X/100-17Y

R900501261 DA20-2-5X/100-17Y/12

R901352598 DA20-2-5X/100-FSB07

R901390446 DA20-2-5X/100-FSB07Y

R900509466 DA20-2-5X/200-10

R900598100 DA20-2-5X/200-10Y

R900546752 DA20-2-5X/200-10YSO65

R901088560 DA20-2-5X/200-150-10

R900597135 DA20-2-5X/200-17

R900577060 DA20-2-5X/200-17SO65

R900598037 DA20-2-5X/200-17/12

R900507180 DA20-2-5X/200-17V

R900500750 DA20-2-5X/200-17V/12

R900597500 DA20-2-5X/200-17Y

R900555928 DA20-2-5X/200-17YSO65

R900501156 DA20-2-5X/200-17Y/12

R900597764 DA20-2-5X/200-17YV/12

R901241955 DA20-2-5X/200-FS

R900500580 DA20-2-5X/315-10

R900511362 DA20-2-5X/315-10V

R900509554 DA20-2-5X/315-10Y

R901212697 DA20-2-5X/315-10YV/12

R900590621 DA20-2-5X/315-17

R900550017 DA20-2-5X/315-17/12

R900535272 DA20-2-5X/315-17V

R900596751 DA20-2-5X/315-17Y

R901064894 DA20-2-5X/315-17Y/12

R901217576 DA20-2-5X/315-FSB07

R900562992 DA20-2-5X/350-17

R900529158 DA20-2-5X/50-10

R900935308 DA20-2-5X/50-17

R900577312 DA20-2-5X/50-17/12

R900576988 DA20-2-5X/50-17Y

R901435088 DA20-2-5X/50-FSB07Y

R900576446 DA20-2-5X=200-17Y

R900548524 DA20-3-5X/100-10

R900571716 DA20-3-5X/100-10Y

R900503084 DA20-3-5X/100-17

R900500495 DA20-3-5X/100-17V

R900500991 DA20-3-5X/100-17Y

R900921044 DA20-3-5X/200-10

R900532616 DA20-3-5X/200-10Y

R900945463 DA20-3-5X/200-10YV

R900599121 DA20-3-5X/200-17

R900723726 DA20-3-5X/200-17V

R900907087 DA20-3-5X/200-17Y

R900511237 DA20-3-5X/200-17YV

R901151794 DA20-3-5X/315-10

R900957696 DA20-3-5X/315-10Y

R900502103 DA20-3-5X/315-17

R900512121 DA20-3-5X/315-17Y

R900910121 DA20-3-5X/50-10Y

R900734484 DA20-3-5X/50-17

R900617103 DA20-3-5X/50-17V

R900919188 DA20-7-5X/100-10

R900727209 DA20-7-5X/200-10Y

R900617686 DA30-1-5X/100-10

R900528843 DA30-1-5X/100-17

R900598053 DA30-1-5X/100-17Y

R901085559 DA30-1-5X/200-10

R900599704 DA30-1-5X/200-17

R900598376 DA30-1-5X/200-17Y

R900715108 DA30-1-5X/315-10Y

R900501759 DA30-1-5X/315-10Y/12

R900500473 DA30-1-5X/315-17

R901058572 DA30-1-5X/315-17V

R900598967 DA30-1-5X/315-17Y

R900503730 DA30-1-5X/50-17Y

R900909951 DA30-2-5X/100-10Y

R900500791 DA30-2-5X/100-17

R900500654 DA30-2-5X/100-17/12

R900535171 DA30-2-5X/100-17V/12

R900596830 DA30-2-5X/100-17Y

R978012493 DA30-2-5X/100-17Y/12

R900519174 DA30-2-5X/200-10

R901046802 DA30-2-5X/200-10V

R900597119 DA30-2-5X/200-10Y

R900501857 DA30-2-5X/200-17

R900534371 DA30-2-5X/200-17/12

R900513844 DA30-2-5X/200-17J

R900507010 DA30-2-5X/200-17Y

R900787850 DA30-2-5X/200-17YV

R901022545 DA30-2-5X/315-10

R900903678 DA30-2-5X/315-10Y

R900503396 DA30-2-5X/315-17

R900510450 DA30-2-5X/315-17/12

R900505620 DA30-2-5X/315-17Y

R901217578 DA30-2-5X/315-FSB07

R900245529 DA30-2-5X/50-10

R900552088 DA30-2-5X/50-10Y

R900549825 DA30-2-5X/50-17

R900506919 DA30-2-5X/50-17Y

R900784967 DA30-2-5X/50-17YV

R900965850 DA30-3-5X/080-10Y

R900570424 DA30-3-5X/100-10Y

R900549649 DA30-3-5X/100-17

R900513582 DA30-3-5X/100-17Y

R901235894 DA30-3-5X/200-10

R900907815 DA30-3-5X/200-10Y

R901093994 DA30-3-5X/200-17

R900712939 DA30-3-5X/200-17Y

R900551643 DA30-3-5X/315-17

R978901340 DA10-1-5X/315-17YV/12

R978862145 DA10-2-5X/100-17/12

R978011730 DA10-2-5X/200-10/12

R978008424 DA10-2-5X/200-10Y/12

R987012091 DA10-5X/...-17RE-765251-4-0

R978909187 DA20-1-5X/200-10Y/12

R978868989 DA20-1-5X/200-17/12

R978871072 DA20-1-5X/200-17Y/12

R978898564 DA20-1-5X/315-17/12

R978901377 DA20-1-5X/315-17YV/12

R978916947 DA20-2-5X/100-10V/12

R978865640 DA20-2-5X/100-17V/12

R978902561 DA20-2-5X/315-10/12

R978872408 DA30-1-5X/315-17/12

R978010174 DA30-2-5X/50-10/12

R978898008 DA30-2-5X/50-17V/12

R900944341 DAC1-5X/200-10

R900597552 DAC1-5X/200-10Y

R900518827 DAC1-5X/200-17

R900513499 DAC1-5X/200-17Y

R900524135 DAC1-5X/315-10

R900598615 DAC1-5X/315-10Y/12

R900502173 DAC1-5X/315-17

R900598534 DAC1-5X/315-17Y

R900563506 DAC1-5X/50-17Y

R900523681 DAC2-5X/100-10

R900903679 DAC2-5X/100-10Y

R900502462 DAC2-5X/100-17

R900529919 DAC2-5X/100-17Y

R900547885 DAC2-5X/200-00SO72

R900508238 DAC2-5X/200-00YSO20

R900503635 DAC2-5X/200-10

R900958154 DAC2-5X/200-10SO46

R900520225 DAC2-5X/200-10Y

R900763599 DAC2-5X/200-10Y/12

R900597205 DAC2-5X/200-17

R900976227 DAC2-5X/200-17/12

R900502644 DAC2-5X/200-17V

R900505759 DAC2-5X/200-17Y

R900599082 DAC2-5X/315-10

R900520302 DAC2-5X/315-10V

R900597953 DAC2-5X/315-17

R978878641 DAC2-5X/315-17/12

R900520301 DAC2-5X/315-17V

R900598099 DAC2-5X/315-17Y

R900903681 DAC2-5X/50-10Y

R901029713 DAC2-5X/50-17/12

R900903680 DAC2-5X/50-17Y

R900599192 DAC3-5X/200-00SO29

R900944277 DAC3-5X/200-10

R900598616 DAC3-5X/200-17

R900901162 DAC3-5X/200-17/12

R900514423 DAC3-5X/315-17

R900509286 DAC30-1-5X/200-10

R901093146 DAC30-1-5X/200-10Y

R900597879 DAC30-1-5X/200-17

R900918629 DAC30-1-5X/200-17Y

R900596611 DAC30-1-5X/315-17

R900509557 DAC30-1-5X/315-17Y

R900597316 DAC30-2-5X/100-10

R900573413 DAC30-2-5X/100-10Y

R900519936 DAC30-2-5X/100-10YV

R900507744 DAC30-2-5X/100-17

R900514940 DAC30-2-5X/100-17V

R900515058 DAC30-2-5X/100-17Y

R900537730 DAC30-2-5X/200-10

R900943756 DAC30-2-5X/200-10V

R900597120 DAC30-2-5X/200-10Y

R900558848 DAC30-2-5X/200-10Y=LB

R900597541 DAC30-2-5X/200-17

R900505541 DAC30-2-5X/200-17Y

R900546348 DAC30-2-5X/200-17YV

R900513800 DAC30-2-5X/315-10

R900969706 DAC30-2-5X/315-10V

R900598452 DAC30-2-5X/315-17

R900597611 DAC30-2-5X/315-17Y

R901007242 DAC30-2-5X/50-10

R900763492 DAC30-2-5X/50-10Y

R900247867 DAC30-3-5X/100-17

R900557717 DAC30-3-5X/200-17V

R900958955 DAC30-3-5X/315-17

R900515856 DAC30-3-5X/50-17YV

R978868397 DAC-2-5X/100-17/12

R987156169 DAC-2-5X/315-17SO26-567

R987109281 DAC-2-5X/50-17/12

R901264745 DAC1-5X/100-10

R900597813 DAC1-5X/100-17Y
