力士樂REXROTH單向閥Z2S6-1-6X/V；武漢百士自動化設備有限公司主營銷售產品，產品實拍，原裝正品，客戶買的安心，用的放心。常用產品現貨供應，歡迎新老客戶詢價采購！

產品簡介：

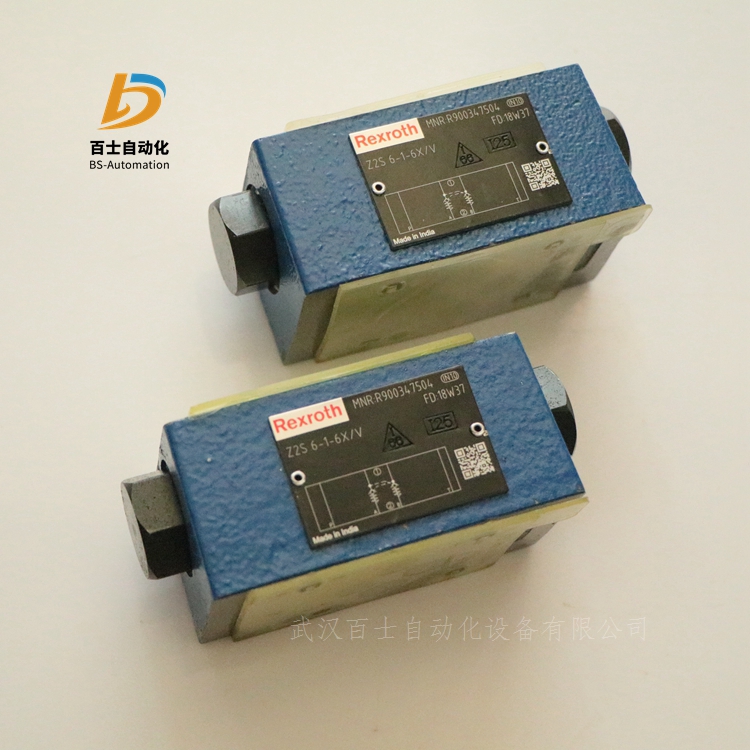

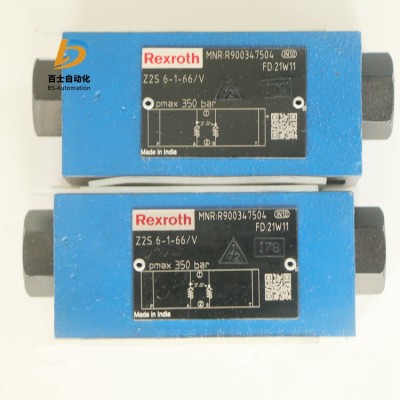

力士樂REXROTH先導式單向閥

Z2S 6

規格 6

組件系列 6X

大工作壓力 315 bar

大流量 60 l/min

油口安裝面符合 DIN 24340 形式 A（不帶孔）

油口安裝面符合 ISO 4401-03-02-0-05（帶孔）

用于一個或兩個執行機構油口的無泄漏阻塞，可選

具有多種開啟壓力，可選（請參閱訂貨代碼）

帶預開口，可選

單向閥安裝套件可單獨使用

可應要求提供特殊型號

Z2S 型單向閥是采用疊加閥板設計的先導式單向閥。

用于一個或兩個執行機構油口的無泄漏阻塞，甚至能夠用于長期停機的情況。

在方向 A1到 A2 或B1到 B2 上，可以自由流動；在相反方向上，流動被阻塞。

例如，如果閥門的流向是從A1到A2，控制閥芯將向 B 側方向移動，打開球座閥并推動閥心偏離其閥座。液壓油現在即可從B2 流向B1。

為了可以安全地封閉球座閥，必須液壓卸載控制閥芯（請參閱油路示例）。

預開口

由于預開口的存在，加壓液體可以進行衰減降壓。這樣避免了可能的換向沖擊。

由于使用的是具有擴大的開口控制面積比的兩級設置，使用較低的先導壓力也可以安全卸載。

注意：

如果閥門不帶預開口，憋壓容積可能會突然卸載。產生的換向沖擊不但會導致安裝組件的過早磨損，還會形成噪音

主營型號：

R900347504 Z2S6-1-6X/V

R900372840 Z2S6-1-6X/VSO481

R901374869 Z2S6-1-6X/V/60

R901429695 Z2S6-1-6X/V/60J3

R900747681 Z2S6-1-6X/V/62

R901426712 Z2S6-1-6X/VJ3

R900072644 Z2S6-1-6X=

R900068608 Z2S6-1-6X==PL

R900913720 Z2S6-1-6X=SO450=PL

R901408551 Z2S6-1-6X=V/60

R987163885 Z2S6-1-64STAMPEDFV2225050

R900347495 Z2S6-1-64/

R901129841 Z2S6-1-64//60

R900727969 Z2S6-1-64//62

R901107049 Z2S6-1-64//62

R901052079 Z2S6-1-64/=TE

R900376034 Z2S6-1-64/J

R901426713 Z2S6-1-64/J3

R901259432 Z2S6-1-64/J50

R900508098 Z2S6-1-64/JV

R900442783 Z2S6-1-64/MIL15

R901402145 Z2S6-1-64/SO150

R900347504 Z2S6-1-64/V

R900372840 Z2S6-1-64/VSO481

R901374869 Z2S6-1-64/V/60

R901429695 Z2S6-1-64/V/60J3

R900747681 Z2S6-1-64/V/62

R901426712 Z2S6-1-64/VJ3

R900072644 Z2S6-1-64=

R900068608 Z2S6-1-64==PL

R900913720 Z2S6-1-64=SO450=PL

R901408551 Z2S6-1-64=V/60

R900347496 Z2S6-2-6X/

R901154311 Z2S6-2-6X//62

R900068376 Z2S6-2-6X/=LB

R900483209 Z2S6-2-6X/J

R900521458 Z2S6-2-6X/JV

R900595899 Z2S6-2-6X/MIL15

R900504839 Z2S6-2-6X/SO26

R900347505 Z2S6-2-6X/V

R900347505 Z2S6-2-64/V

R900347505 Z2S6-2-66/V

R901263932 Z2S6-2-6X/V/62

R901436568 Z2S6-2-6X/VJ3

R901286324 Z2S6-2-6X/VJ50

R901030535 Z2S6-2-6X/XCV

R900072794 Z2S6-2-6X=V

R900347497 Z2S6-3-6X/

R901052128 Z2S6-3-6X/=TE

R900458250 Z2S6-3-6X/J

R900953976 Z2S6-3-6X/J

R901417797 Z2S6-3-6X/J3=TE

R900596848 Z2S6-3-6X/MIL15

R900347506 Z2S6-3-6X/V

R900950210 Z2S6-4-6X/

R901124299 Z2S6-4-6X/V

R900347498 Z2S6A1-6X/

R901107246 Z2S6A1-6X//62

R901268716 Z2S6A1-6X/60

R900375981 Z2S6A1-6X/J

R900581522 Z2S6A1-6X/JV

R900563546 Z2S6A1-6X/MIL15

R900454978 Z2S6A1-6X/SO111

R900473528 Z2S6A1-6X/SO56

R900347507 Z2S6A1-6X/V

R901170210 Z2S6A1-6X/V/60

R901126655 Z2S6A1-6X/V/62

R900347499 Z2S6A2-6X/

R900739494 Z2S6A2-6X//62

R900786910 Z2S6A2-6X/J

R900921826 Z2S6A2-6X/MIL15

R900347508 Z2S6A2-6X/V

R901426710 Z2S6A2-6X/VJ3

R901286325 Z2S6A2-6X/VJ50

R901030539 Z2S6A2-6X/XCV

R900347500 Z2S6A3-6X/

R900595234 Z2S6A3-6X/J

R900347509 Z2S6A3-6X/V

R983056760 Z2S6A3-6X/VIN010

R900347501 Z2S6B1-6X/

R900347501 Z2S6B1-66/

R901254993 Z2S6B1-6X//60

R901107241 Z2S6B1-6X//62

R900395133 Z2S6B1-6X/J

R900372460 Z2S6B1-6X/SO111

R901437169 Z2S6B1-6X/SO150

R901239412 Z2S6B1-6X/SO710

R900347510 Z2S6B1-6X/V

R901149420 Z2S6B1-6X/V/62

R901426711 Z2S6B1-6X/VJ3

R901288118 Z2S6B1-6X/VJ50

R900702167 Z2S6B1-6X=

R900576242 Z2S6B1-6X==PL

R900347502 Z2S6B2-6X/

R900782456 Z2S6B2-6X/J

R900921825 Z2S6B2-6X/MIL15

R900438365 Z2S6B2-6X/SO62

R900347511 Z2S6B2-6X/V

R983064662 Z2S6B2-6X/VIN010

R900347503 Z2S6B3-6X/

R900595233 Z2S6B3-6X/J

R900347512 Z2S6B3-6X/V

R983030693 Z2S6B3-6X/VIN010

R983030692 Z2S6B3-6XIN010

R983030682 Z2S6-1-6XIN010

R983030683 Z2S6-1-6X/VIN010

R983030688 Z2S6-2-6XIN010

R983030694 Z2S6-2-6X/VIN010

R983030684 Z2S6-3-6XIN010

R983052557 Z2S6-3-6X/VIN010

R983030685 Z2S6-A1-6XIN010

R983030691 Z2S6-A1-6X/VIN010

R983030686 Z2S6-A2-6XIN010

R983030689 Z2S6-A3-6XIN010

R983030687 Z2S6-B1-6XIN010

R983030695 Z2S6-B1-6X/VIN010

R983030690 Z2S6-B2-6XIN010

力士樂REXROTH疊加式液控單向閥Z2S 10

R983030703 Z2S10B2-3XIN010

R900407394 Z2S10-1-3X/

R900407394 Z2S10-1-34

R901402344 Z2S10-1-3X/=KM

R900558982 Z2S10-1-3X/=LB

R900438180 Z2S10-1-3X/J

R901436572 Z2S10-1-3X/J3

R900437771 Z2S10-1-3X/JV

R900407439 Z2S10-1-3X/V

R900576597 Z2S10-1-3X=

R900421985 Z2S10-2-3X/

R900902866 Z2S10-2-3X/J

R901140423 Z2S10-2-3X/JV

R900507607 Z2S10-2-3X/SO32

R900436801 Z2S10-2-3X/V

R901404994 Z2S10-2-3X/VS0150

R901436574 Z2S10-2-3X/VJ3

R900431003 Z2S10-3-3X/

R983030701 Z2S10-3-3X/IN010

R900506964 Z2S10-3-3X/MIL15

R900440349 Z2S10-3-3X/V

R983042025 Z2S10-3-3X/VIN010

R983046862 Z2S10-4-3XIN010

R900420049 Z2S10-4-3X/

R901393675 Z2S10-4-3X/=NE

R901052092 Z2S10-4-3X/=TE

R901330981 Z2S10-4-3X/SO150

R900506366 Z2S10-4-3X/V

R983043156 Z2S10-A3-3X/IN010

R983042996 Z2S10-A4-3X/VIN010

R983043155 Z2S10-B3-3X/IN010

R900407424 Z2S10A1-3X/

R900584523 Z2S10A1-3X/J

R901436573 Z2S10A1-3X/J3

R900407440 Z2S10A1-3X/V

R900503728 Z2S10A1-3X/VSO49

R900434028 Z2S10A2-3X/

R900591534 Z2S10A2-3X/J

R900436812 Z2S10A2-3X/V

R900447732 Z2S10A3-3X/

R900437010 Z2S10A3-3X/

R901416254 Z2S10A3-3X/QMA

R900468484 Z2S10A3-3X/V

R900516212 Z2S10A4-3X/

R900567281 Z2S10A4-3X/V

R901425743 Z2S10A4-3X=J3

R900407434 Z2S10B1-3X/

R900464449 Z2S10B1-3X/J

公示： 因工業液壓、自動化各進口品牌備件型號繁多，歐美產品價格實時變化，因此很難實時標出準確價格，請以業務員實際報價單價格為準！ 給您帶來不便敬請諒解。
