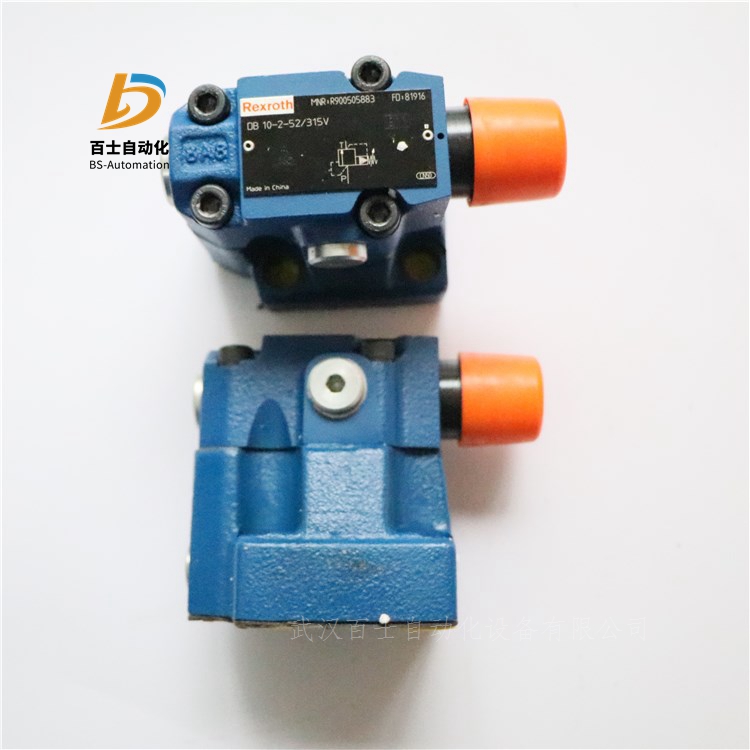

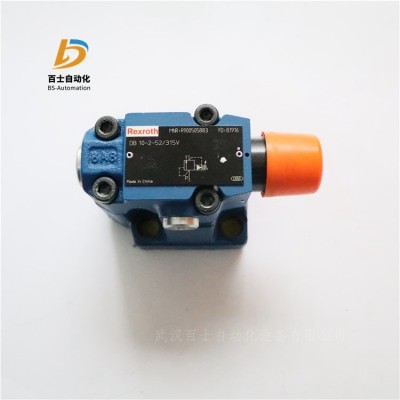

力士樂REXROTH溢流閥R900505883 DB10-2-52/315V

武漢百士自動化設備有限公司主營銷售產品，產品實拍，原裝正品，客戶買的安心，用的放心。常用產品現

貨供應，歡迎新老客戶詢價采購！

產品簡介：

力士樂REXROTH先導控制溢流閥

溢流閥DB

規格 10, 16, 25, 32

重量  2.6kg, 3.5kg, 4.4kg

組件系列 5X

大工作壓力 350 bar

大流量 650 l/min

液壓油溫度范圍  -10 … +60℃

粘度范圍  12 … 230mm2/s

用于底板安裝

油口安裝面符合 ISO 6264-06-09 (NG10)、ISO 6264-08-13 (NG25) 和 ISO 6264-10-17 (NG32)

用于螺紋連接

高功率線圈

防腐蝕設計

當電壓 > 50 VAC 或 > 75 VDC 時，CE 符合性符合低電壓指令 2014/35/EU

DB 型壓力閥是一種先導式溢流閥。用于限制工作壓力。

這些溢流閥 (DB) 主要由帶主閥心的主閥以及帶壓力調節元件的先導控制閥組成。

施加在通道 P 中的壓力作用于主閥芯。同時，該壓力通過配有噴嘴和的控制油路和施加于主閥芯的彈簧負載側和先導控制閥中

的滾珠。如果通道 P 中的壓力超過彈簧上設定的值，則滾珠將背向彈簧打開。相應的信號通過控制油路和從通道 P 由內部傳出。

此時主閥芯彈簧負載側的液壓油通過控制油路、噴嘴孔和滾珠流入彈簧腔。從此處，液壓油通過控制油路從內部流入油箱（對

于型號 DB …），或通過控制油路從外部流入油箱（對于型號 DB …Y）。噴嘴和會導致主閥芯出現壓降，從而使通道 P 到通道

 T 的連接打開?，F在，液壓油從通道 P 流到通道 T，同時維持設定的工作壓力。

溢流閥可通過油口“X”卸載或切換為另一壓力（第二個壓力等級）。

德國力士樂REXROTH溢流閥訂貨號和型號：

力士樂先導式溢流閥DB(C/T)

R900502910 DB10G.-5X/...

R900500047 DB10G1-5X/100

R901024574 DB10G1-5X/100/12

R901427597 DB10G1-5X/100V

R900930854 DB10G1-5X/100XYV

R900503508 DB10G1-5X/200

R901054901 DB10G1-5X/200Y

R900508342 DB10G1-5X/315

R900529505 DB10G1-5X/315B

R900763389 DB10G1-5X/315U

R978002775 DB10G1-5X/315U/12

R901276418 DB10G1-5X/315V

R900577146 DB10G1-5X/315X

R900970758 DB10G1-5X/315XY

R900546358 DB10G1-5X/330B

R900617093 DB10G1-5X/350

R901127259 DB10G1-5X/350V

R900709939 DB10G1-5X/350V/12

R901283471 DB10G1-5X/350X

R900519854 DB10G1-5X/350Y

R900524910 DB10G1-5X/50

R901160595 DB10G1-5X/50/12

R901262503 DB10G1-5X/50D

R901262369 DB10G1-5X/50E

R900961150 DB10G1-5X/50UMK/12

R901283472 DB10G1-5X/50XU

R900582099 DB10G1-5X/50Y

R900598149 DB10G2-5X/100

R900577791 DB10G2-5X/100B

R901283930 DB10G2-5X/100D

R901369480 DB10G2-5X/100E

R900560199 DB10G2-5X/100U

R901210919 DB10G2-5X/100U/12

R900546916 DB10G2-5X/100V

R900500857 DB10G2-5X/100X

R900535686 DB10G2-5X/100XU

R901409845 DB10G2-5X/100XY

R900506685 DB10G2-5X/100Y

R901298009 DB10G2-5X/110E

R901270492 DB10G2-5X/115E

R901410871 DB10G2-5X/120E

R901291808 DB10G2-5X/125E

R901270676 DB10G2-5X/130E

R901270671 DB10G2-5X/135E

R900546293 DB10G2-5X/140B

R901355804 DB10G2-5X/140E

R901353674 DB10G2-5X/145E

R900923282 DB10G2-5X/150B

R901313635 DB10G2-5X/150E

R901285090 DB10G2-5X/155E

R900579243 DB10G2-5X/160B

R901286931 DB10G2-5X/160E

R901382894 DB10G2-5X/165E

R901333490 DB10G2-5X/170E

R900900320 DB10G2-5X/175B

R901257500 DB10G2-5X/175E

R900767624 DB10G2-5X/180B

R901149270 DB10G2-5X/180E

R901283853 DB10G2-5X/190E

R901365451 DB10G2-5X/195E

R900597363 DB10G2-5X/200

R900511044 DB10G2-5X/200B

R901004680 DB10G2-5X/200D

R901315636 DB10G2-5X/200E

R901286855 DB10G2-5X/200P160

R901031387 DB10G2-5X/200P180

R900559545 DB10G2-5X/200V

R900539744 DB10G2-5X/200X

R900968514 DB10G2-5X/200XY

R900508489 DB10G2-5X/200Y

R901037477 DB10G2-5X/200YV

R900900321 DB10G2-5X/210B

R900775477 DB10G2-5X/210E

R900979712 DB10G2-5X/250B

R900769530 DB10G2-5X/250E

R901313366 DB10G2-5X/260E

R900935319 DB10G2-5X/300B

R900935319 DB10G2-5X/300B

R901106405 DB10G2-5X/30E

R900590737 DB10G2-5X/315

R978863873 DB10G2-5X/315/12

R900744509 DB10G2-5X/315B

R901239461 DB10G2-5X/315E

R900966934 DB10G2-5X/315J3

R900588958 DB10G2-5X/315U/12

R900947547 DB10G2-5X/315V

R900513523 DB10G2-5X/315V/12

R900505374 DB10G2-5X/315X

R901228658 DB10G2-5X/315XJ3

R901026090 DB10G2-5X/315XU

R900503743 DB10G2-5X/315XV/12

R900562988 DB10G2-5X/315XY

R900535064 DB10G2-5X/315Y

R901364870 DB10G2-5X/315YV

R900513797 DB10G2-5X/350

R900949079 DB10G2-5X/350/12

R901013697 DB10G2-5X/350D

R900560836 DB10G2-5X/350U

R900521337 DB10G2-5X/350X

R900968097 DB10G2-5X/350Y

R901402829 DB10G2-5X/45E

R900599233 DB10G2-5X/50

R900977718 DB10G2-5X/50-10

R901365068 DB10G2-5X/50-20

R901365067 DB10G2-5X/50-25

R900945462 DB10G2-5X/50-40

R900938810 DB10G2-5X/50/12

R901351804 DB10G2-5X/500SO699

R900597296 DB10G2-5X/50B

R901106538 DB10G2-5X/50D

R901406786 DB10G2-5X/50E

R901287266 DB10G2-5X/50P20

R900510576 DB10G2-5X/50U

R900503105 DB10G2-5X/50UJ3

R900953459 DB10G2-5X/50UV

R900597414 DB10G2-5X/50V

R901242707 DB10G2-5X/50V/12

R900746747 DB10G2-5X/50XY

R900505398 DB10G2-5X/50Y

R901098905 DB10G2-5X/50YU

R900537299 DB10G2-5X/50YUV

R900505078 DB10G2-5X/50YV

R901402116 DB10G2-5X/60E

R901283852 DB10G2-5X/70E

R901313633 DB10G2-5X/85E

R901317252 DB10G2-5X/90E

R901295019 DB10G2-5X/95E

R900597340 DB10G3-5X/100

R900597361 DB10G3-5X/200

R900924746 DB10G3-5X/200X

R901095933 DB10G3-5X/200Y

R900968652 DB10G3-5X/315

R900517281 DB10G3-5X/350

R900952024 DB10G3-5X/350X

R900534684 DB10G3-5X/50

R900509060 DB10G3-5X/50V

R900506738 DB10G3-5X/50Y

R901031715 DB10G3-5X/50YU

R900558164 DB10G7-5X/100

R900549312 DB10G7-5X/200

R901361948 DB10G7-5X/200XY

R900946277 DB10G7-5X/350V/12

R901219150 DB10G7-5X/50YU

R900502906 DB10-.-5X/...

R900589262 DB10-.-5X/...U

R900597664 DB10-1-5X/100

R900781638 DB10-1-5X/100-035

R900508964 DB10-1-5X/100/12

R900503252 DB10-1-5X/100B

R900509085 DB10-1-5X/100U

R900617361 DB10-1-5X/100UV

R900511818 DB10-1-5X/100UV/12

R900597559 DB10-1-5X/100V

R901437605 DB10-1-5X/100VD

R901437497 DB10-1-5X/100VE

R900597689 DB10-1-5X/100X

R900533537 DB10-1-5X/100XU

R900548642 DB10-1-5X/100XU/12

R900507611 DB10-1-5X/100XY

R900533385 DB10-1-5X/100XYU

R900500038 DB10-1-5X/100Y

R900512764 DB10-1-5X/100YU

R900975659 DB10-1-5X/160B

R901081480 DB10-1-5X/160X

R900505052 DB10-1-5X/200

R900976226 DB10-1-5X/200/12

R900500011 DB10-1-5X/200B

R901215241 DB10-1-5X/200D

R901257074 DB10-1-5X/200E

R900512518 DB10-1-5X/200U

R900764368 DB10-1-5X/200V

R900536231 DB10-1-5X/200X

R901273808 DB10-1-5X/200XU

R901192055 DB10-1-5X/200XV

R900533812 DB10-1-5X/200XY

R900547023 DB10-1-5X/200Y

R900975792 DB10-1-5X/200Y/12

R901179918 DB10-1-5X/200YU

R901215197 DB10-1-5X/210E

R901102372 DB10-1-5X/220E

R900576022 DB10-1-5X/220XB

R901115994 DB10-1-5X/220YE

R901096704 DB10-1-5X/235E

R901182179 DB10-1-5X/250E

R900546359 DB10-1-5X/290B

R901108157 DB10-1-5X/290E

R900598998 DB10-1-5X/315

R900526055 DB10-1-5X/315B

R901341310 DB10-1-5X/315E

R900537021 DB10-1-5X/315U

R900533859 DB10-1-5X/315U/12

R900514011 DB10-1-5X/315V

R900596114 DB10-1-5X/315X

R900505710 DB10-1-5X/315X/12

R900506303 DB10-1-5X/315XB

R900919397 DB10-1-5X/315XU

R900534282 DB10-1-5X/315XY

R900510403 DB10-1-5X/315XYB

R900507306 DB10-1-5X/315XYV

R900513586 DB10-1-5X/315Y

R900547295 DB10-1-5X/315Y/12

R900519053 DB10-1-5X/315YB

R900593794 DB10-1-5X/350

R900781637 DB10-1-5X/350-220

R901096868 DB10-1-5X/350D

R900920949 DB10-1-5X/350V

R900508274 DB10-1-5X/350X

R900579925 DB10-1-5X/350Y

R901116182 DB10-1-5X/350YD

R900597665 DB10-1-5X/50

R900529006 DB10-1-5X/50U

R900781133 DB10-1-5X/50V

R900926944 DB10-1-5X/50XY

R901004651 DB10-1-5X/50XYU

R900573342 DB10-1-5X/50Y

R900780054 DB10-1-5X/50YU

R900590646 DB10-2-5X/100

R900597083 DB10-2-5X/100SO184

R900535030 DB10-2-5X/100/12

R900517467 DB10-2-5X/100B

R901014645 DB10-2-5X/100D

R900773341 DB10-2-5X/100E

R901034003 DB10-2-5X/100P55Y

R900593839 DB10-2-5X/100U

R900562090 DB10-2-5X/100U/12

R900933729 DB10-2-5X/100UV

R900507503 DB10-2-5X/100V

R901004433 DB10-2-5X/100V/12

R900514760 DB10-2-5X/100VB

R901321953 DB10-2-5X/100VD

R900596930 DB10-2-5X/100X

R900739443 DB10-2-5X/100X/12

R900516785 DB10-2-5X/100XU

R900561319 DB10-2-5X/100XUV

R900909218 DB10-2-5X/100XV

R900596738 DB10-2-5X/100XY

R900556115 DB10-2-5X/100XY/12

R900532526 DB10-2-5X/100XYU

R900515149 DB10-2-5X/100XYV

R900595739 DB10-2-5X/100Y

R900787944 DB10-2-5X/100YD

R900787139 DB10-2-5X/100YE

R900513648 DB10-2-5X/100YU

R978026483 DB10-2-5X/100YU/12

R900519210 DB10-2-5X/100YUV

R900509059 DB10-2-5X/100YV

R900748673 DB10-2-5X/100YV/12

R900546294 DB10-2-5X/120B

R901054783 DB10-2-5X/120E

R901338932 DB10-2-5X/120YE

R900723738 DB10-2-5X/130B

R900618575 DB10-2-5X/140B

R900546295 DB10-2-5X/150B

R901390927 DB10-2-5X/150E

R900770687 DB10-2-5X/150XE

R900713681 DB10-2-5X/150YB

R901005290 DB10-2-5X/150YE

R901066860 DB10-2-5X/155E

R900546296 DB10-2-5X/160B

R900769556 DB10-2-5X/160E

R901005411 DB10-2-5X/160YE

R900546297 DB10-2-5X/170B

R901292202 DB10-2-5X/175E

R900546298 DB10-2-5X/180B

R901353262 DB10-2-5X/180E

R901339044 DB10-2-5X/185E

R900769409 DB10-2-5X/190E

R901338931 DB10-2-5X/190YE

R900587772 DB10-2-5X/200

R900781634 DB10-2-5X/200-105

R901122078 DB10-2-5X/200-115

R901121950 DB10-2-5X/200-120

R901253827 DB10-2-5X/200-160

R900931975 DB10-2-5X/200-165

R901049523 DB10-2-5X/200-170

R900535928 DB10-2-5X/200/12

R900911336 DB10-2-5X/200/50

R900558854 DB10-2-5X/200=LB

R900599323 DB10-2-5X/200B

R901013095 DB10-2-5X/200D

R901021955 DB10-2-5X/200E

R901282967 DB10-2-5X/200P120U

R901077617 DB10-2-5X/200P160

R901011411 DB10-2-5X/200U

R900502649 DB10-2-5X/200V

R900247148 DB10-2-5X/200V/12

R900947642 DB10-2-5X/200VB

R900595345 DB10-2-5X/200X

R900968799 DB10-2-5X/200XU

R900701467 DB10-2-5X/200XV

R900509086 DB10-2-5X/200XY

R900781733 DB10-2-5X/200XY/12

R900599380 DB10-2-5X/200Y

R901078455 DB10-2-5X/200Y/12

R901000091 DB10-2-5X/200YD

R900533538 DB10-2-5X/200YU

R900528384 DB10-2-5X/200YV

R900940658 DB10-2-5X/200YV/12

R900546360 DB10-2-5X/210B

R900769420 DB10-2-5X/210E

R900546361 DB10-2-5X/210YB

R901358841 DB10-2-5X/210YE

R900577262 DB10-2-5X/220B

R900769498 DB10-2-5X/220E

R901005286 DB10-2-5X/220YE

R901041986 DB10-2-5X/230E

R901383594 DB10-2-5X/235E

R900546362 DB10-2-5X/250B

R900768627 DB10-2-5X/250E

R900788114 DB10-2-5X/250YE

R901205176 DB10-2-5X/270E

R900944626 DB10-2-5X/270XB

R901086648 DB10-2-5X/285YE

R900944628 DB10-2-5X/295XB

R901309059 DB10-2-5X/300E

R901281680 DB10-2-5X/305YE

R900590334 DB10-2-5X/315

R900719054 DB10-2-5X/315-210

R900707943 DB10-2-5X/315-230

R900780197 DB10-2-5X/315-250

R900904527 DB10-2-5X/315-250X

R900733353 DB10-2-5X/315-280

R900535929 DB10-2-5X/315/12

R900596626 DB10-2-5X/315B

R901000654 DB10-2-5X/315E

R900513845 DB10-2-5X/315J3

R900949638 DB10-2-5X/315P305X

R901053153 DB10-2-5X/315P315

R900593840 DB10-2-5X/315U

R900535666 DB10-2-5X/315U/12

R900573198 DB10-2-5X/315UB

R900562297 DB10-2-5X/315UV

R978871415 DB10-2-5X/315UV/12

R900505883 DB10-2-5X/315V

R900546662 DB10-2-5X/315V/12

R900516389 DB10-2-5X/315VB

R900591126 DB10-2-5X/315X

R900758397 DB10-2-5X/315XB

R900526496 DB10-2-5X/315XU

R900536877 DB10-2-5X/315XU/12

R900567750 DB10-2-5X/315XUV

R900599205 DB10-2-5X/315XV

R900597590 DB10-2-5X/315XY

R901152542 DB10-2-5X/315XYU

R901160806 DB10-2-5X/315XYV

R900597313 DB10-2-5X/315Y

R901009611 DB10-2-5X/315Y/12

R900597445 DB10-2-5X/315YB

R901000073 DB10-2-5X/315YE

R900513599 DB10-2-5X/315YU

R900716465 DB10-2-5X/315YU/12

R900708265 DB10-2-5X/315YV

R901139839 DB10-2-5X/315YV/12

R901358843 DB10-2-5X/320YE

R900546363 DB10-2-5X/325B

R901414214 DB10-2-5X/325E

R901003351 DB10-2-5X/325YE

R900546364 DB10-2-5X/330B

R901042253 DB10-2-5X/330E

R900546365 DB10-2-5X/330VB

R900729299 DB10-2-5X/340VB

R900773257 DB10-2-5X/340VE

R900597992 DB10-2-5X/350

R901079887 DB10-2-5X/350-170

R901008762 DB10-2-5X/350-205

R900781636 DB10-2-5X/350-245

R901312538 DB10-2-5X/350-250

R901095755 DB10-2-5X/350-270

R901050554 DB10-2-5X/350-285

R901049522 DB10-2-5X/350-295

R901292436 DB10-2-5X/350-295X

R901208873 DB10-2-5X/350-300

R901104330 DB10-2-5X/350-320

R901065086 DB10-2-5X/350-330

R901217381 DB10-2-5X/350-350

R900534005 DB10-2-5X/350/12

R900558855 DB10-2-5X/350=LB

R900705356 DB10-2-5X/350B

R901003408 DB10-2-5X/350D

R901070345 DB10-2-5X/350E

R901093524 DB10-2-5X/350P350

R900249511 DB10-2-5X/350V

R901020317 DB10-2-5X/350VD

R900501045 DB10-2-5X/350X

R901094599 DB10-2-5X/350X./12

R901052268 DB10-2-5X/350XU

R901246914 DB10-2-5X/350XV

R900511665 DB10-2-5X/350XY

R901056913 DB10-2-5X/350XY/12

R900548408 DB10-2-5X/350XYU

R900597420 DB10-2-5X/350Y

R900778197 DB10-2-5X/350Y/12

R900788117 DB10-2-5X/350YD

R901317058 DB10-2-5X/350YE

R900500117 DB10-2-5X/350YV

R900546291 DB10-2-5X/40B

R901048715 DB10-2-5X/40E

R900590645 DB10-2-5X/50

R900951239 DB10-2-5X/50-15XV

R900911082 DB10-2-5X/50-30

R900535930 DB10-2-5X/50/12

R900929814 DB10-2-5X/50B

R901022588 DB10-2-5X/50D

R901034001 DB10-2-5X/50E

R901251515 DB10-2-5X/50P20

R900725852 DB10-2-5X/50P25

R900961072 DB10-2-5X/50P30

R900579303 DB10-2-5X/50U

R901444731 DB10-2-5X/50U/12

R900703457 DB10-2-5X/50UV

R900598054 DB10-2-5X/50V

R900511831 DB10-2-5X/50X

R900536300 DB10-2-5X/50XU

R900508332 DB10-2-5X/50XV

R900734775 DB10-2-5X/50XY

R900976222 DB10-2-5X/50XY/12

R900516068 DB10-2-5X/50XYU

R900597342 DB10-2-5X/50Y

R900921126 DB10-2-5X/50Y/12

R900509825 DB10-2-5X/50YU

R900774148 DB10-2-5X/50YV

R978012490 DB10-2-5X/50YV/12

R901321941 DB10-2-5X/70VE

R901215690 DB10-2-5X/80E

R900546292 DB10-2-5X/80VB

R900596563 DB10-3-5X/100

R900522567 DB10-3-5X/100U

R900563388 DB10-3-5X/100UV

R900502262 DB10-3-5X/100V

R900513752 DB10-3-5X/100X

R900937809 DB10-3-5X/100XV

R900515045 DB10-3-5X/100XY

R900596562 DB10-3-5X/100Y

R901041651 DB10-3-5X/100YU

R900594773 DB10-3-5X/200

R900923108 DB10-3-5X/200/12

R900975411 DB10-3-5X/200V

R900502039 DB10-3-5X/200X

R900599133 DB10-3-5X/200X/12

R900573811 DB10-3-5X/200XYU

R900503544 DB10-3-5X/200Y

R900594604 DB10-3-5X/315

R900532300 DB10-3-5X/315U

R901437200 DB10-3-5X/315V

R900505157 DB10-3-5X/315X

R900772004 DB10-3-5X/315XU

R900618979 DB10-3-5X/315XV

R900523864 DB10-3-5X/315XY

R900503637 DB10-3-5X/315Y

R900907113 DB10-3-5X/315YU

R901096727 DB10-3-5X/315YV

R900510623 DB10-3-5X/350

R901183613 DB10-3-5X/350X

R900528385 DB10-3-5X/350Y

R900503083 DB10-3-5X/50

R900903174 DB10-3-5X/50U

R900941383 DB10-3-5X/50UV

R900920195 DB10-3-5X/50V

R901179393 DB10-3-5X/50Y

R900503664 DB10-3-5X/50YU

R901081472 DB10-4-5X/160X

R901081460 DB10-4-5X/160XM

R901108812 DB10-4-5X/160XV

R901081470 DB10-4-5X/160XY

R901081463 DB10-4-5X/160XYM
